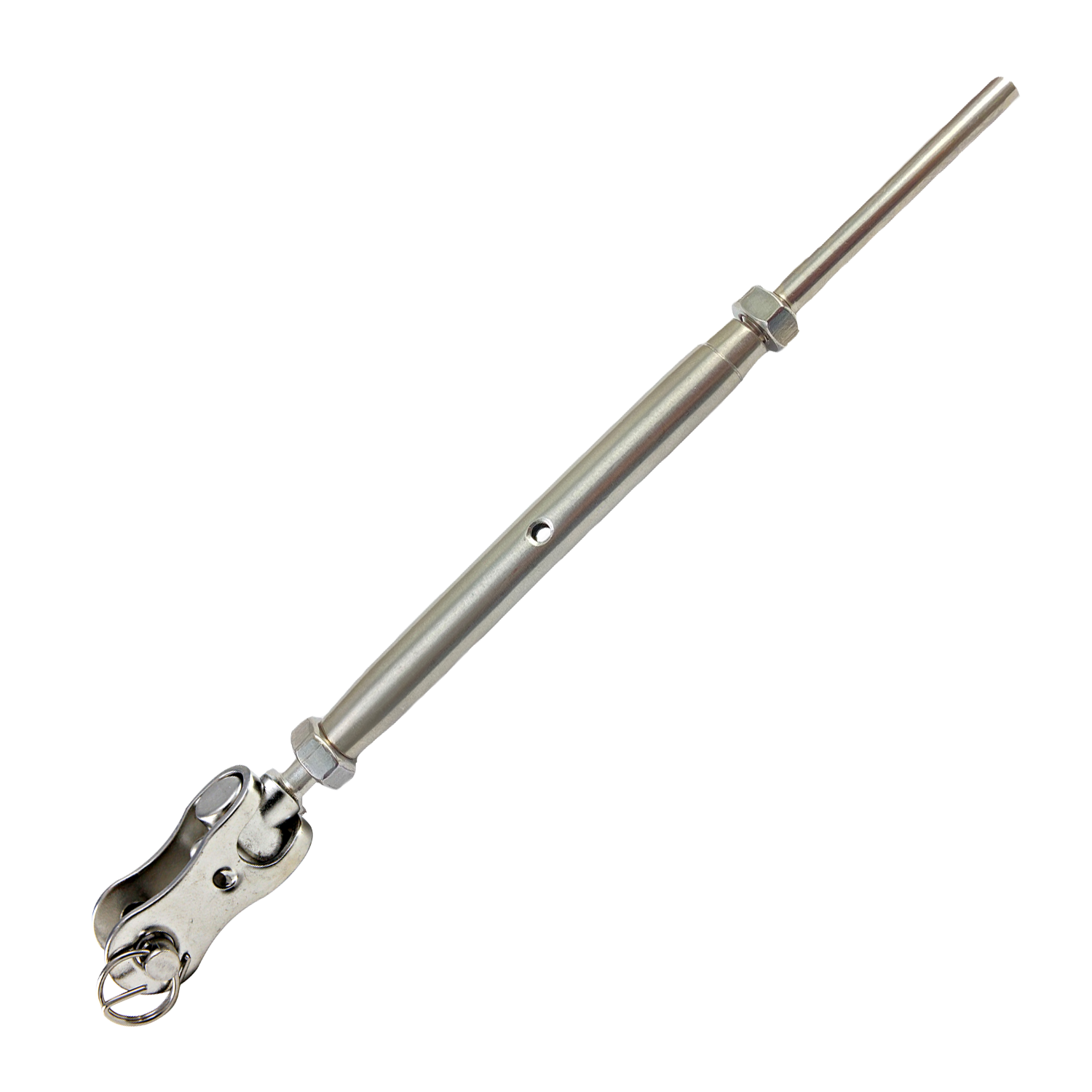

STAINLESS STEEL HAND & MACHINE SWAGE TOGGLE AND LIFE LINE STUD TURNBUCKLE - T316

TOGGLE AND LIFE LINE STUD TURNBUCKLE.png

STAINLESS STEEL HAND & MACHINE SWAGE TOGGLE AND LIFE LINE STUD TURNBUCKLE - T316

from $16.24

FOR WHOLESALE QUANTITIES AND PRICES PLEASE CALL (909-595-8500) OR EMAIL US AT SALES@CABLERAILSPECIALIST.COM

CABLE SIZE:

1/8" 3/16" 1/4"

SWAGE STYPE:

HAND MACHINE

Quantity:

Add To Cart

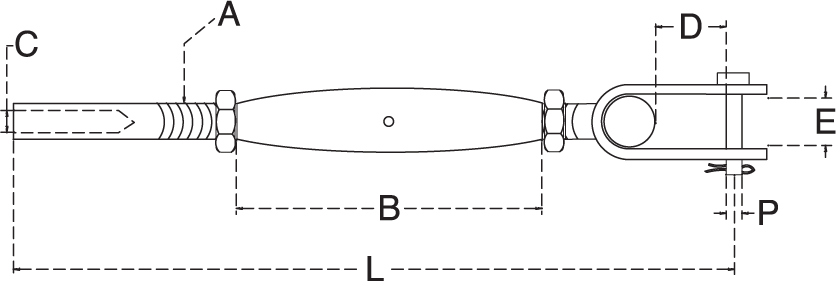

    HAND   SWAGE



    Part No.
    C   (Cable Size)
    A   (Thread)
    B
    D
    E
    P


    T6PBHLTST14-18
    1/8”
    1/4"-20
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBHLTST14-18UNF
    1/8”
    1/4"-28
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBHLTST14-316
    3/16”
    1/4"-20
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBHLTST14-316UNF
    3/16”
    1/4"-28
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBHLTST516-14
    1/4"
    5/16”-18
    4-5/32”
    0.72
    0.55”
    0.31”


    MACHINE   SWAGE


    Part No.
    C   (Cable Size)
    A   (Thread)
    B
    D
    E
    P


    T6PBMLTST14-18
    1/8”
    1/4"-20
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBMLTST14-18UNF
    1/8”
    1/4"-28
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBMLTST14-316
    3/16”
    1/4"-20
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBMLTST14-316UNF
    3/16”
    1/4"-28
    3-3/4”
    0.70”
    0.41”
    0.23”


    T6PBMLTST516-14
    1/4"
    5/16”-18
    4-5/32”
    0.72
    0.55”
    0.31”




*All specifications and descriptions are done manually, some of the information, including price, descriptions, specifications, and/or quantities may not be 100% accurate.
