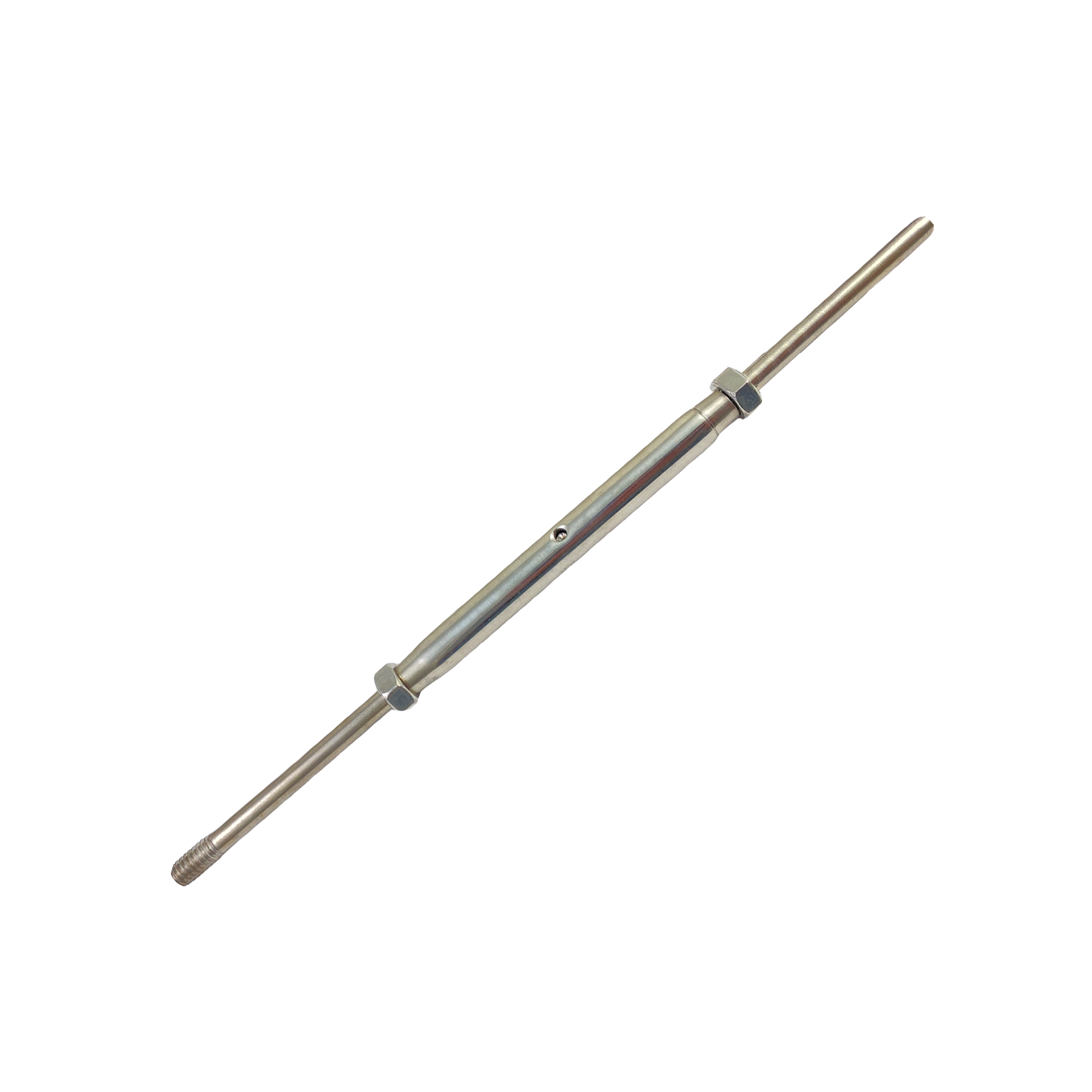

STAINLESS STEEL ROD AND LIFE LINE STUD W/PIPE BODY TURNBUCKLE - T316
STAINLESS STEEL ROD AND LIFE LINE STUD W/PIPE BODY TURNBUCKLE - T316
from $14.45
FOR WHOLESALE QUANTITIES AND PRICES PLEASE CALL (909-595-8500) OR EMAIL US AT SALES@CABLERAILSPECIALIST.COM
CABLE SIZE:
SWAGE TYPE:
THREAD TYPE:
Quantity:
| HAND SWAGE | ||||
|---|---|---|---|---|

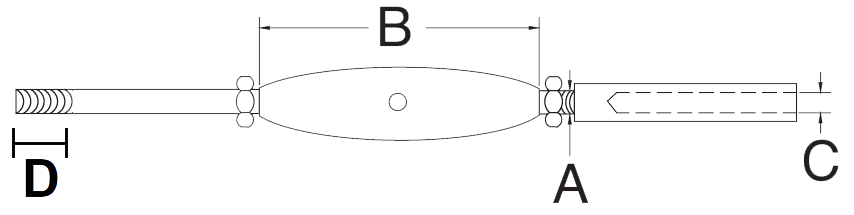

| Part No. | C (Cable Size) | A (Thread) | B | D |
| T6PBHLRST14-18 | 1/8” | 1/4"-20 | 3-3/4” | 1/2" |
| T6PBHLRST14-18UNF | 1/8” | 1/4"-28 | 3-3/4” | 1/2" |
| T6PBHLRST14-316 | 3/16” | 1/4"-20 | 3-3/4” | 1/2" |
| T6PBHLRST14-316UNF | 3/16” | 1/4"-28 | 3-3/4” | 1/2" |
| T6PBHLRST516-14 | 1/4" | 5/16”-18 | 4-5/32” | 1/2" |
| T6PBHLRST516-14UNF | 1/4" | 5/16”-24 | 4-5/32” | 1/2" |
| T6PBHLRST38-14 | 1/4" | 3/8”-16 | 4-3/4” | 9/16" |
| MACHINE SWAGE | ||||
| Part No. | C (Cable Size) | A (Thread) | B | D |
| T6PBMLRST14-18 | 1/8” | 1/4"-20 | 3-3/4” | 1/2" |
| T6PBMLRST14-18UNF | 1/8” | 1/4"-28 | 3-3/4” | 1/2" |
| T6PBMLRST14-316 | 3/16” | 1/4"-20 | 3-3/4” | 1/2" |
| T6PBMLRST14-316UNF | 3/16” | 1/4"-28 | 3-3/4” | 1/2" |
| T6PBMLRST516-14 | 1/4" | 5/16”-18 | 4-5/32” | 1/2" |
| T6PBHLRST516-14UNF | 1/4" | 5/16”-24 | 4-5/32” | 1/2" |
| T6PBMLRST38-14 | 1/4" | 3/8”-16 | 4-3/4”” | 1/2" |
*All specifications and descriptions are done manually, some of the information, including price, descriptions, specifications, and/or quantities may not be 100% accurate.
