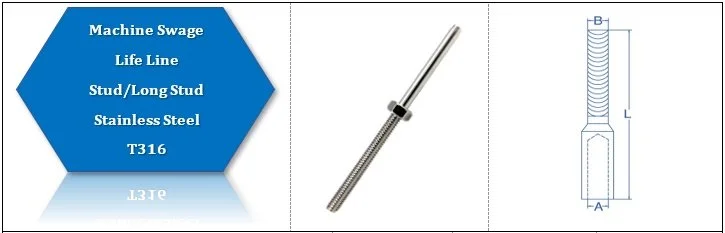

STAINLESS STEEL MACHINE SWAGE LIFE LINE STUD - T316
STAINLESS STEEL MACHINE SWAGE LIFE LINE STUD - T316
from $7.75
FOR WHOLESALE QUANTITIES AND PRICES PLEASE CALL (909-595-8500) OR EMAIL US AT SALES@CABLERAILSPECIALIST.COM
SIZE:
THREAD:
Quantity:

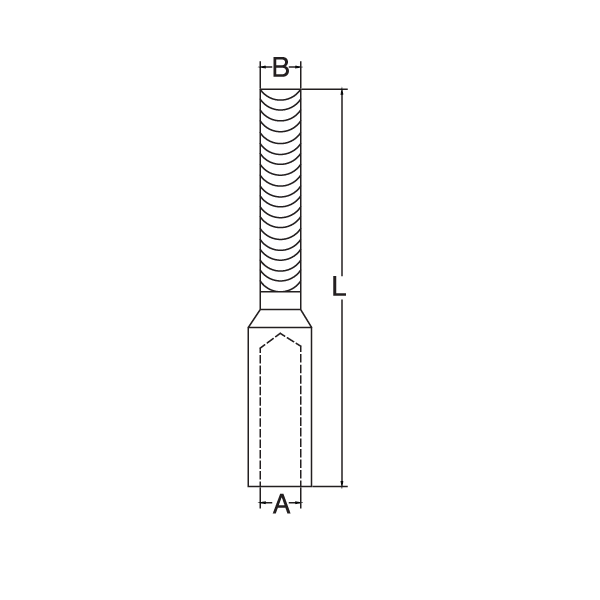

| Part No. | A (Cable Size) | B (Thread) | C | L |
|---|---|---|---|---|
| T6MLSST14-18L (Left) | 1/8” | 1/4" – 20 | 1-13/16” | 4-1/4” |
| T6MLSST14-18R (Right) | 1/8” | 1/4" - 20 | 1-13/16” | 4-1/4” |
| T6MLSST14-18UNFL (Left) (Fine Thread) | 1/8” | 1/4" - 28 | 1-13/16” | 4-1/4” |
| T6MLSST14-18UNFR (Right) (Fine Thread) | 1/8” | 1/4" - 28 | 1-13/16” | 4-1/4” |
| T6MLSST14-316L (Left) | 3/16” | 1/4" - 20 | 1-11/16” | 4-1/2” |
| T6MLSST14-316R (Right) | 3/16” | 1/4" - 20 | 1-11/16” | 4-1/2” |
| T6MLSST14-316UNFL (Left) (Fine Thread) | 3/16” | 1/4" - 28 | 1-11/16” | 4-1/2” |
| T6MLSST14-316UNFR (Right) (Fine Thread) | 3/16” | 1/4" - 28 | 1-11/16” | 4-1/2” |
| T6MLSST516-316UNFR (Right) | 3/16” | 5/16”-24 | 1-11/16” | 2-1/8” |
| T6MLSST516-14L (Left) | 1/4" | 5/16” - 18 | 2-5/16” | 4-3/4” |
| T6MLSST516-14R (Right) | 1/4" | 5/16” - 18 | 2-5/16” | 4-3/4” |
| T6MLSST516-14HSXL (Extra Long) | 1/4" | 5/16” - 18 | 2-5/16” | 12-1/4” |
| T6MLSST516-14UNFL (Left) (Fine Thread) | 1/4" | 5/16” - 24 | 2-5/16” | 4-3/4” |
| T6MLSST516-14UNFR (Right) (Fine Thread) | 1/4" | 5/16” - 24 | 2-5/16” | 4-3/4” |
| T6MLSST516-14UNFXLR (Extra Long) (Right) (Fine Thread) | 1/4” | 5/16”-24 | 2-5/16” | 12-1/4” |
| T6MLSST38-14L (Left) | 1/4" | 3/8” - 16 | 2-5/16” | 5-1/4” |
| T6MLSST38-14R (Right) | 1/4" | 3/8” - 16 | 2-5/16” | 5-1/4” |
| T6MLSST38-14HSXL (Extra Long) | 1/4" | 3/8” - 16 | 2-5/16” | 12-1/4” |
| T6MLSST38-14UNFL (Left) (Fine Thread) | 1/4" | 3/8” – 24 | 2-5/16” | 5-1/4” |
| T6MLSST38-14UNFR (Right) (Fine Thread) | 1/4" | 3/8” - 24 | 2-5/16” | 5-1/4” |
*All specifications and descriptions are done manually, some of the information, including price, descriptions, specifications, and/or quantities may not be 100% accurate.
