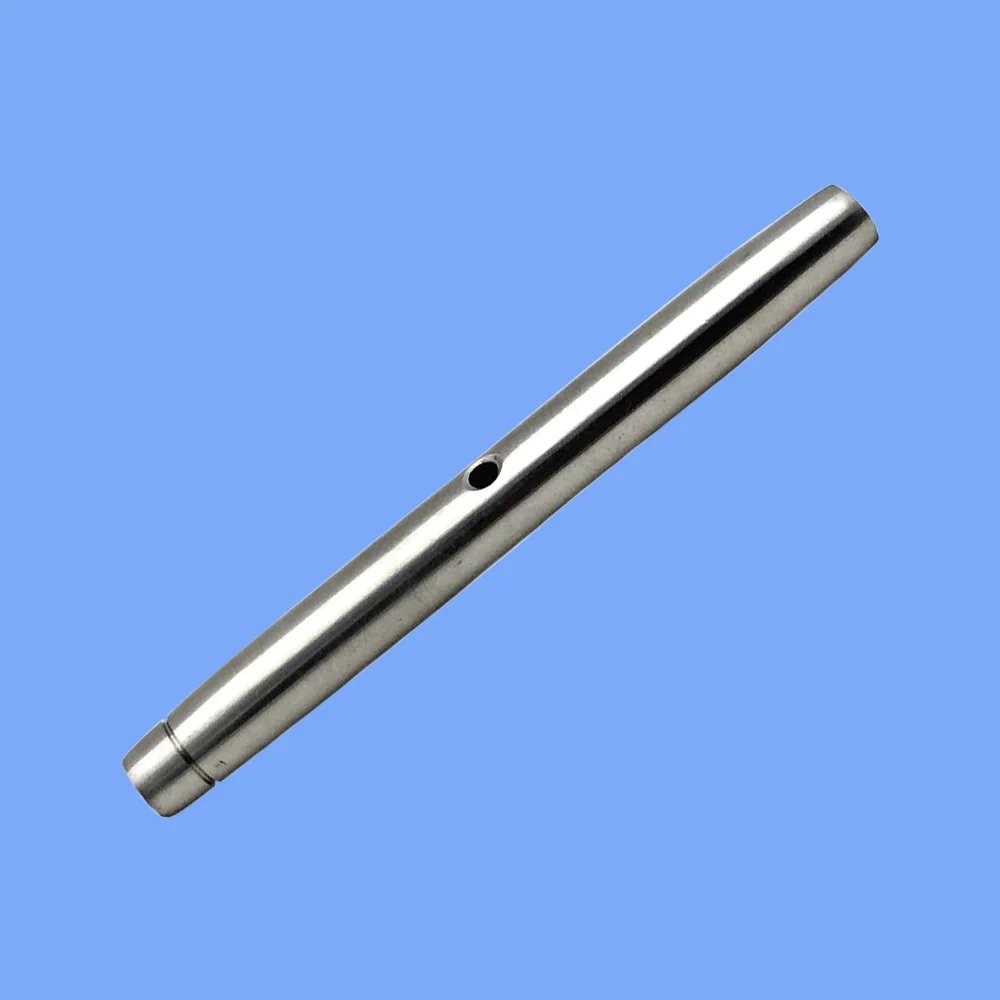

Stainless Steel Pipe Body Turnbuckle - Type 316



    Part No.
    A (Thread)
    B (Total Length)


    1
    T6PB-14
    1/4"
    3-3/4”


    2
    T6PB-14UNF
    1/4"
    3-3/4”


    3
    T6PB-316
    3/16”
    3-5/16”


    4
    T6PB-516
    5/16”
    4-3/16”


    5
    T6PB-38
    3/8”
    4-3/4”


    6
    T6PB-38UNF
    3/8”
    4-3/4”


    7
    T6PB-12
    1/2”
    6”


    8
    T6PB-58
    5/8”
    7-5/8”


    9
    T6PB-34
    3/4"
    8-3/4”


Stainless Steel Hand & Machine Stud & Stud Turnbuckle - Type 316


    Hand Swage



    Part No.
    F (Cable Size)
    A (Thread)
    B
    C


    1
    T6PBHSST14-18
    1/8”
    1/4”-20
    3-3/4”
    7-3/4”


    2
    T6PBHSST14-18UNF
    1/8”
    1/4”-28
    3-3/4”
    7-3/4”


    3
    T6PBHSST14-316
    3/16”
    1/4"-20
    3-3/4”
    7-3/4”


    4
    T6PBHSST14-316UNF
    3/16”
    1/4"-28
    3-3/4”
    7-3/4”


    5
    T6PBHSST516-14
    1/4"
    5/16”-18
    4-3/16”
    9-3/16”


    6
    T6PBHSST516-14UNF
    1/4"
    5/16”-24
    4-3/16”
    9-3/16”










    Machine Swage



    Part No.
    F (Cable Size)
    A (Thread)
    B
    C


    1
    T6PBMSST14-18
    1/8”
    1/4"-20
    3-3/4”
    7-3/4”


    2
    T6PBMSST14-316
    3/16”
    1/4”-20
    3-3/4”
    7-3/4”


    3
    T6PBHSST516-14
    1/4"
    5/16”-18
    4-3/16”
    9-3/16”


    4
    T6PBHSST38-14
    1/4"
    3/8”-16
    4-3/4”
    10-1/8”


Stainless Steel Hand & Machine Swage Lifeline Stud and Stud Turnbuckle - Type 316


    Hand Swage



    Part No.
    F (Cable Size)
    A (Thread)
    B
    C


    1
    T6PBHLSST14-18
    1/8”
    1/4"-20
    3-3/4”
    8-1/2”


    2
    T6PBHLSST14-18UNF
    1/8”
    1/4"-28
    3-3/4”
    8-1/2”


    3
    T6PBHLSST14-316
    3/16”
    1/4”-20
    3-3/4”
    8-1/2”


    4
    T6PBHLSST14-316UNF
    3/16”
    1/4”-28
    3-3/4”
    8-1/2”


    5
    T6PBHSLSST516-14
    5/16”
    5/16”-18
    4-7/8”
    10-3/16”


    6
    T6PBHSLSST516-14UNF
    5/16”
    5/16”-24
    4-7/8”
    10-3/16”


    7
    T6PBHSLSST38-14
    1/4"
    3/8”-16
    5”
    10-1/2”


    8
    T6PBHSLSST38-14UNF
    1/4"
    3/8”-24
    5”
    10-1/2”










    Machine Swage



    Part No.
    F (Cable Size)
    A (Thread)
    B
    C


    1
    T6PBMLSST14-18
    1/8”
    1/4"-20
    3-3/4”
    8-1/2”


    2
    T6PBMLSST14-18UNF
    1/8”
    1/4"-24
    3-3/4”
    8-1/2”


    3
    T6PBMLSST14-316
    3/16”
    1/4”-20
    3-3/4”
    8-1/2”


    4
    T6PBMLSST14-316UNF
    3/16”
    1/4”-24
    3-3/4”
    8-1/2”


    5
    T6PBMLSST516-14
    5/16”
    5/16”-18
    4-1/8”
    9-1/2”


    6
    T6PBMLSST516-14UNF
    5/16”
    5/16”-24
    4-1/8”
    9-1/2”


    7
    T6PBMLSST38-14
    3/8”
    3/8”-16
    5”
    10-1/2”


    8
    T6PBMLSST38-14UNF
    3/8”
    3/8”-24
    5”
    10-1/2”

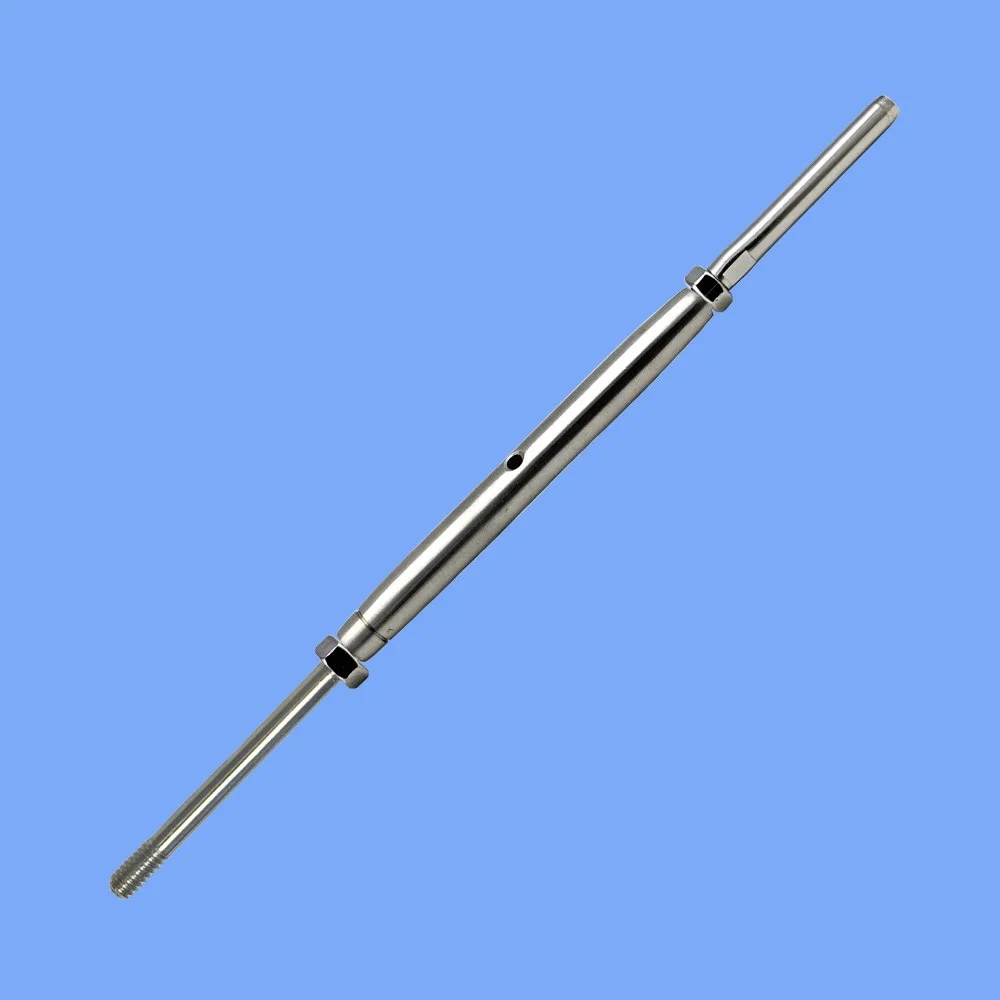

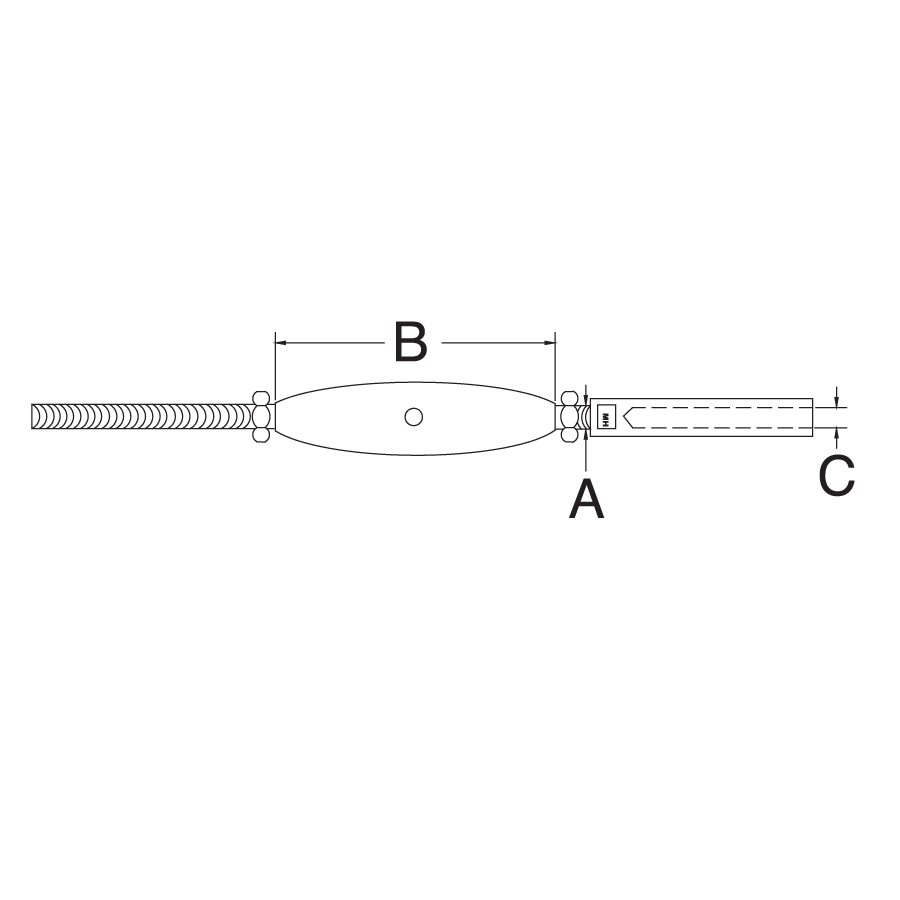

Stainless Steel Hand & Machine Swage Rod and Stud Turnbuckle - Type 316

Threaded Rod and Swage Stud Turnbuckle.png


    Hand Swage

    Part No.
    C (Cable Size)
    A (Thread)
    B

    1
    T6PBHSRST14-18
    1/8”
    1/4"-20
    3-3/4”

    2
    T6PBHSRST14-316
    3/16”
    1/4"-20
    3-3/4”

    Machine Swage

    Part No.
    C (Cable Size)
    A (Thread)
    B

    1
    T6PBMSRST14-18
    1/8”
    1/4"-20
    3-3/4”

    2
    T6PBMSRST14-316
    3/16”
    1/4"-20
    3-3/4”

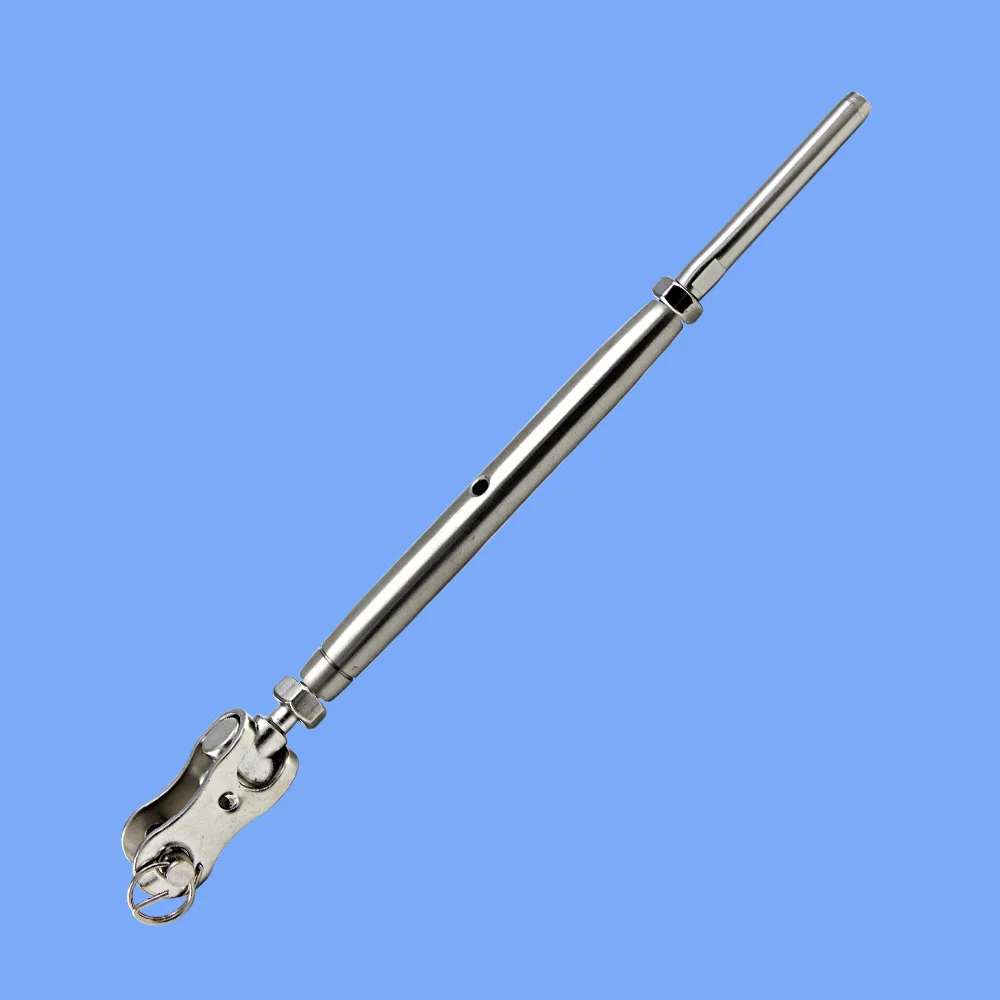

Stainless Steel Hand & Machine Swage Toggle and Stud Turnbuckle - Type 316


    Hand Swage



    Part No.
    C (Cable Size)
    A (Thread)
    B
    D
    E
    P


    1
    T6PBHSTST14-18
    1/8”
    1/4"-20
    3-3/4”
    0.96”
    0.40”
    0.23”


    2
    T6PBHSTST14-18UNF
    1/8”
    1/4"-28
    3-3/4”
    0.96”
    0.40”
    0.23”


    3
    T6PBHSTST14-316
    3/16”
    1/4"-20
    3-3/4”
    0.96”
    0.40”
    0.23”


    4
    T6PBHSTST14-316UNF
    3/16”
    1/4"-28
    3-3/4”
    0.96”
    0.40”
    0.23”












    Machine Swage



    Part No.
    C (Cable Size)
    A (Thread)
    B
    D
    E
    P


    1
    T6PBHSTST14-18
    1/8”
    1/4"-20
    3-3/4”
    0.96”
    0.40”
    0.23”


    2
    T6PBHSTST14-18UNF
    1/8”
    1/4"-28
    3-3/4”
    0.96”
    0.40”
    0.23”


    3
    T6PBHSTST14-316
    3/16”
    1/4"-20
    3-3/4”
    0.96”
    0.40”
    0.23”


    4
    T6PBHSTST14-316UNF
    3/16”
    1/4"-28
    3-3/4”
    0.96”
    0.40”
    0.23”

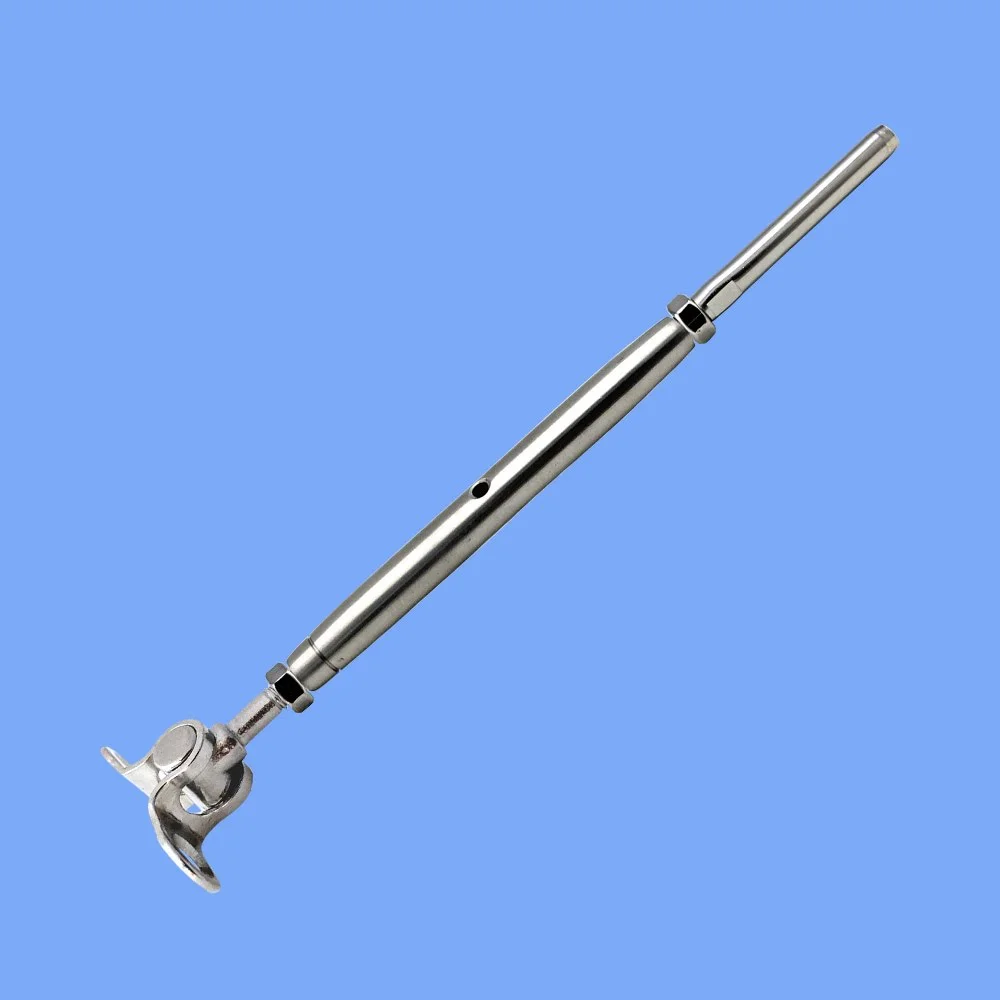

Stainless Steel Hand & Machine Swage Deck Toggle and Stud Turnbuckle - Type 316

Deck Toggle and Hand Swage Stud Turnbuckle.png


    Hand Swage



    Part No.
    C (Cable Size)
    A (Thread)
    B
    D


    1
    T6PBHSDTST14-18
    1/8”
    1/4"-20
    3-3/4”
    0.25”


    2
    T6PBHSDTST14-18UNF
    1/8”
    1/4"-28
    3-3/4”
    0.25”


    3
    T6PBHSDTST14-316
    3/16”
    1/4"-20
    3-3/4”
    0.25”


    4
    T6PBHSDTST14-316UNF
    3/16”
    1/4"-28
    3-3/4”
    0.25”










    Machine Swage



    Part No.
    C (Cable Size)
    A (Thread)
    B
    D


    1
    T6PBMSDTST14-18
    1/8”
    1/4"-20
    3-3/4”
    0.25”


    2
    T6PBMSDTST14-18UNF
    1/8”
    1/4"-20
    3-3/4”
    0.25”


    3
    T6PBMSDTST14-316
    3/16”
    1/4"-20
    3-3/4”
    0.25”


    4
    T6PBMSDTST14-316UNF
    3/16”
    1/4"-20
    3-3/4”
    0.25”

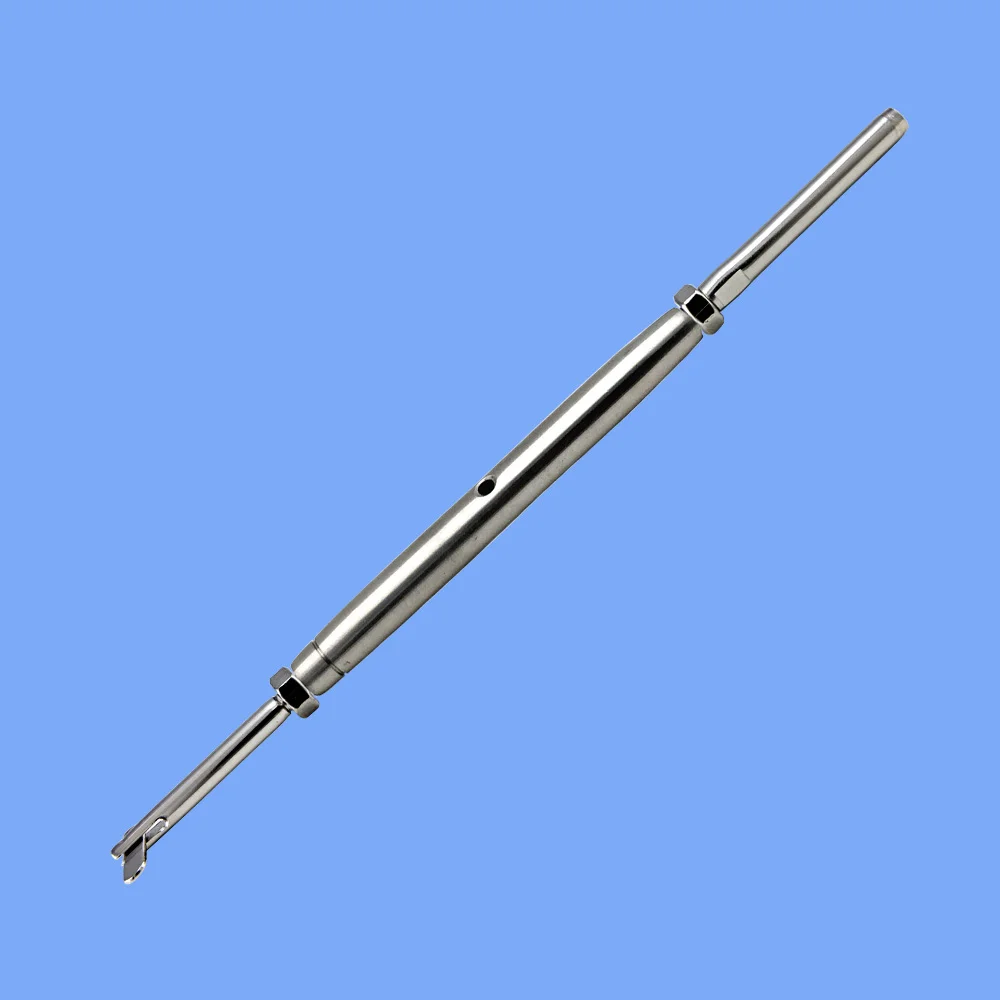

Stainless Steel Hand Swage Drop Pin and Stud Turnbuckle - Type 316


Drop Pin & Hand Swage Stud Turnbuckle.png



    Part No.
    C (Cable Size)
    A (Thread)
    B
    H


    1
    T6PBHSDPST14-18
    1/8”
    1/4”-20
    3-3/4”
    0.25


    2
    T6PBHSDPST14-316
    3/16”
    1/4”-20
    3-3/4”
    0.25

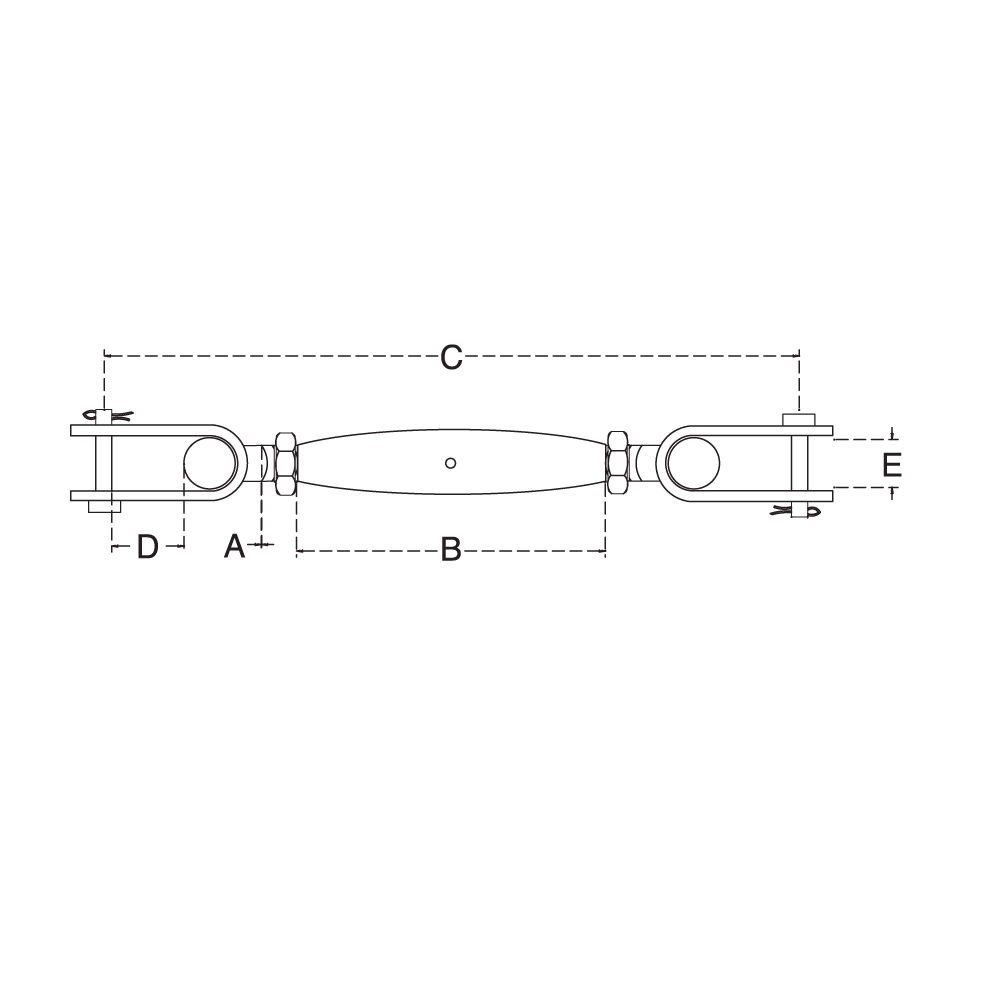

Stainless Steel Jaw and Jaw Turnbuckle - Type 316

     Part No.
       A (Thread)
       B
    C
    D
    E



    T6PBJJ-316
    3/16”
    3-1/4”
    5-3/16”
    3/16”
    9/32"


       T6PBJJ-14
       1/4”
       3-3/4”
       6”
       1/4"
       13/32”


    T6PBJJ-516
    5/16”
    4-3/16”
    7-5-16”
    5/16”
    7/16”


       T6PBJJ-38
       3/8”
       4-3/4”
       8-3/4”
       3/8”
       15/32"


    T6PBJJ-12
    1/2"
    8”
    10-3/4”
    1/2"
    9/16”


Stainless Steel Marine Eye and Eye Turnbuckle - Type 316


    Part No.
    (Thread) A
    B
    C
    D
    E


    T6PBMEE316-472
    3/16”-24
    3-1/8”
    5-1/32”
    7/32”
    15/32”


    T6PBMEE14-531
    1/4-28
    3-3/4”
    5-61/64”
    1/4"
    9/16”


    T6PBMEE516-630
    5/16”-24
    4-1/8”
    7-1/4”
    5/16”
    11/16”


    T6PBMEE38-748
    3/8”-24
    5”
    8-1/2”
    13/32”
    29/32”

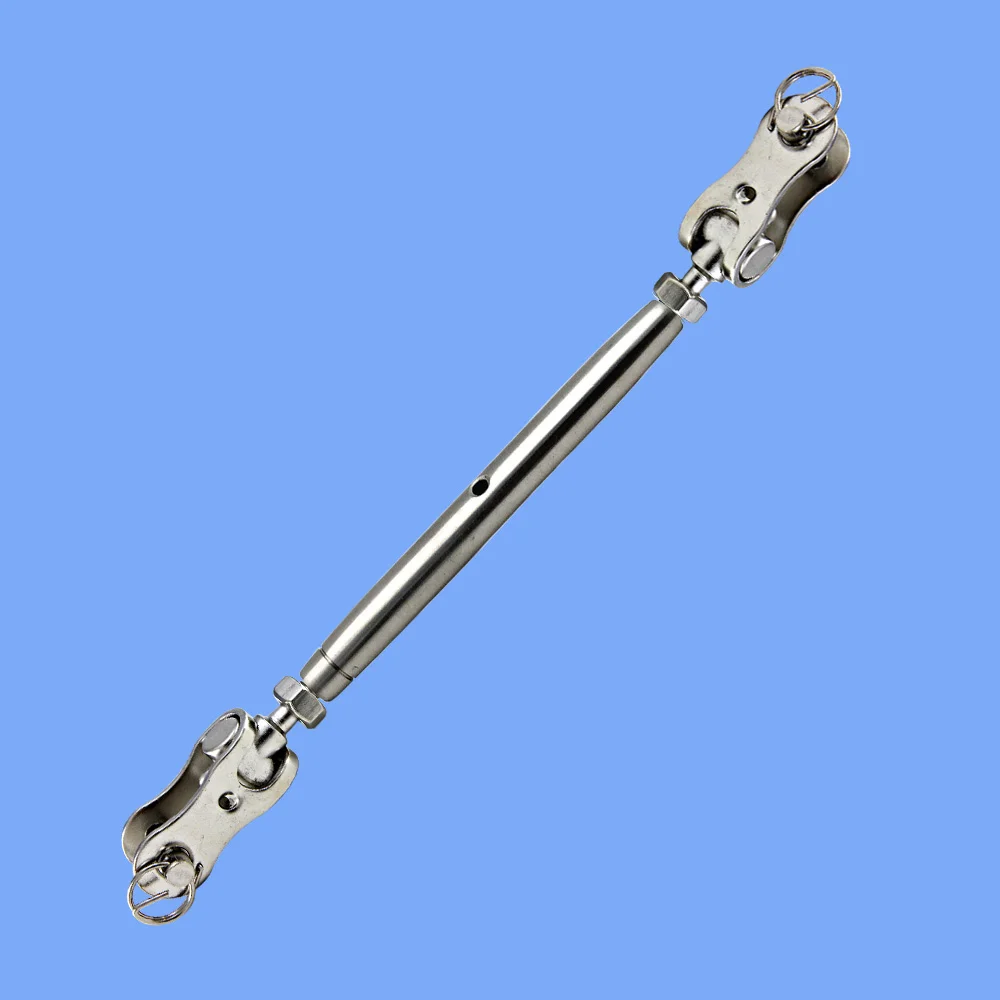

Stainless Steel Toggle Jaw and Jaw Turnbuckle - Type 316


    Part No.
    (Thread) A
    B
    C
    D
    E


    T6PBTT-14
    1/4"-20
    3-3/4”
    5-3/4”
    0.66”
    5/16”


    T6PBTT-14UNF
    1/4"-28
    3-3/4”
    5-3/4”
    0.66”
    5/16”


    T6PBTT-516
    5/16”-18
    4-3/16”
    7-5/16”
    0.66”
    3/8”
