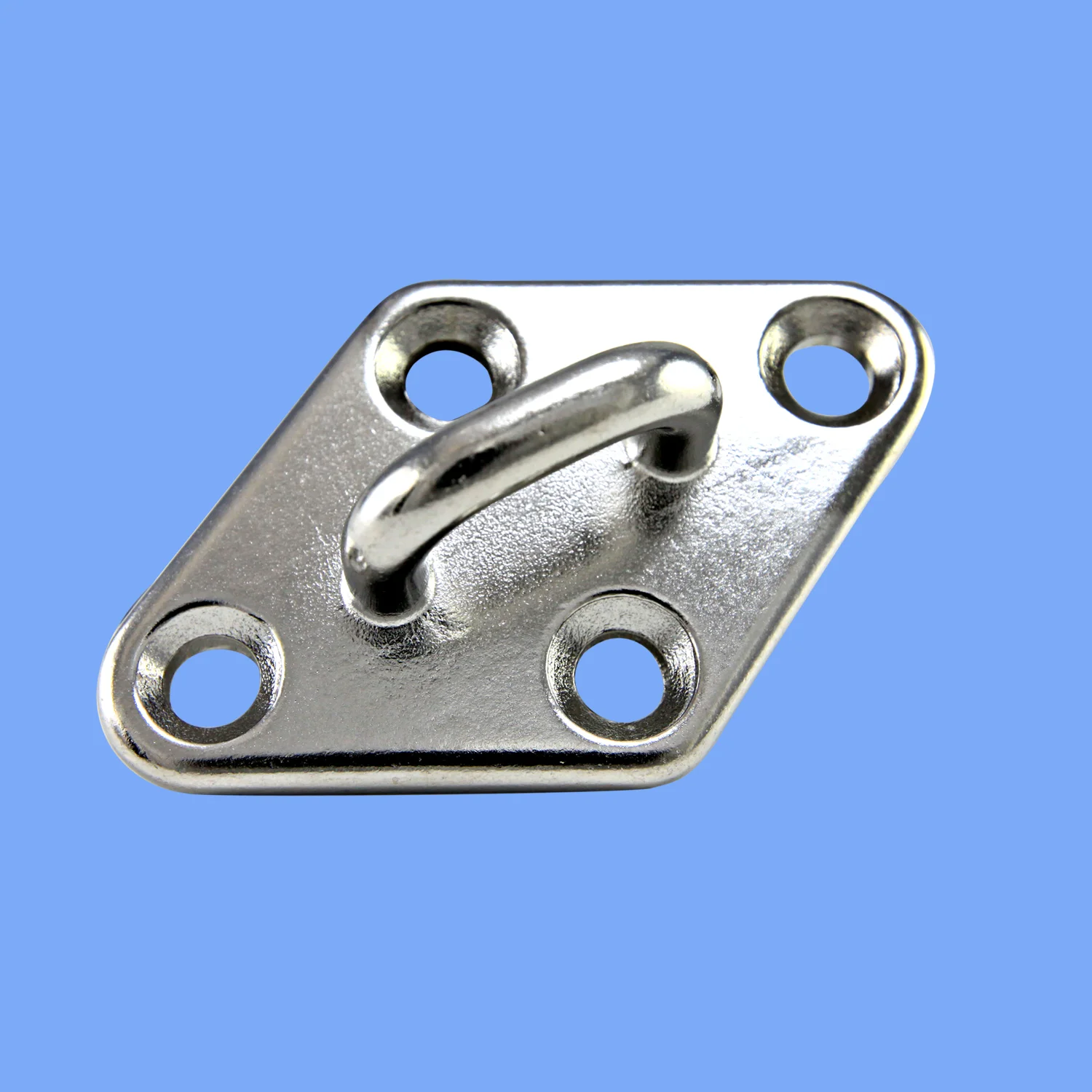

Stainless Steel Diamond Pad Eye - Type 316
Part No. | A | CB | C | H | |
---|---|---|---|---|---|
1 | T6DMPE-516 | 5/16” | 2-1/4” | 3-1/2” | 1-3/8” |
Part No. | A | CB | C | H | |
---|---|---|---|---|---|
1 | T6DMPE-516 | 5/16” | 2-1/4” | 3-1/2” | 1-3/8” |
Part No. | A | B | C | H | |
---|---|---|---|---|---|
1 | T6OBPE-516 | 5/16” | 1” | 3-3/16” | 1-11/32” |
Part No. | A | B | C | |
---|---|---|---|---|
1 | T6WES-5 | 3/16 | 11/16” | 1-1/2” |

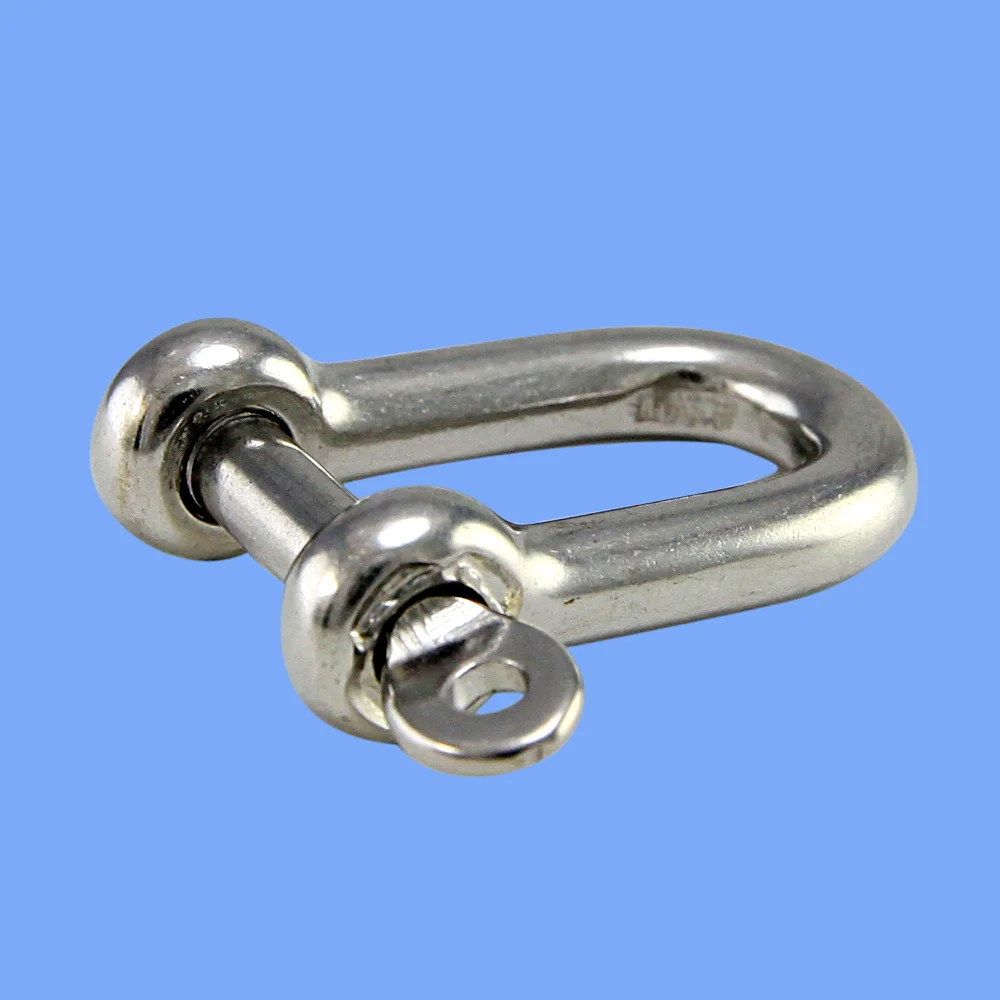

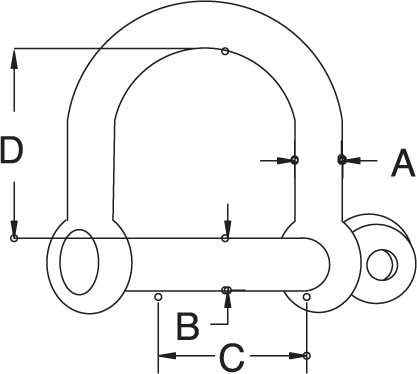

Part No. | A | B | C | D | |
---|---|---|---|---|---|
1 | T6DSH-14C | 1/4" | 1/4" | 15/32” | 13/16” |
2 | T6DSH-516C | 5/16” | 5/16” | 5/8” | 1-3/16” |

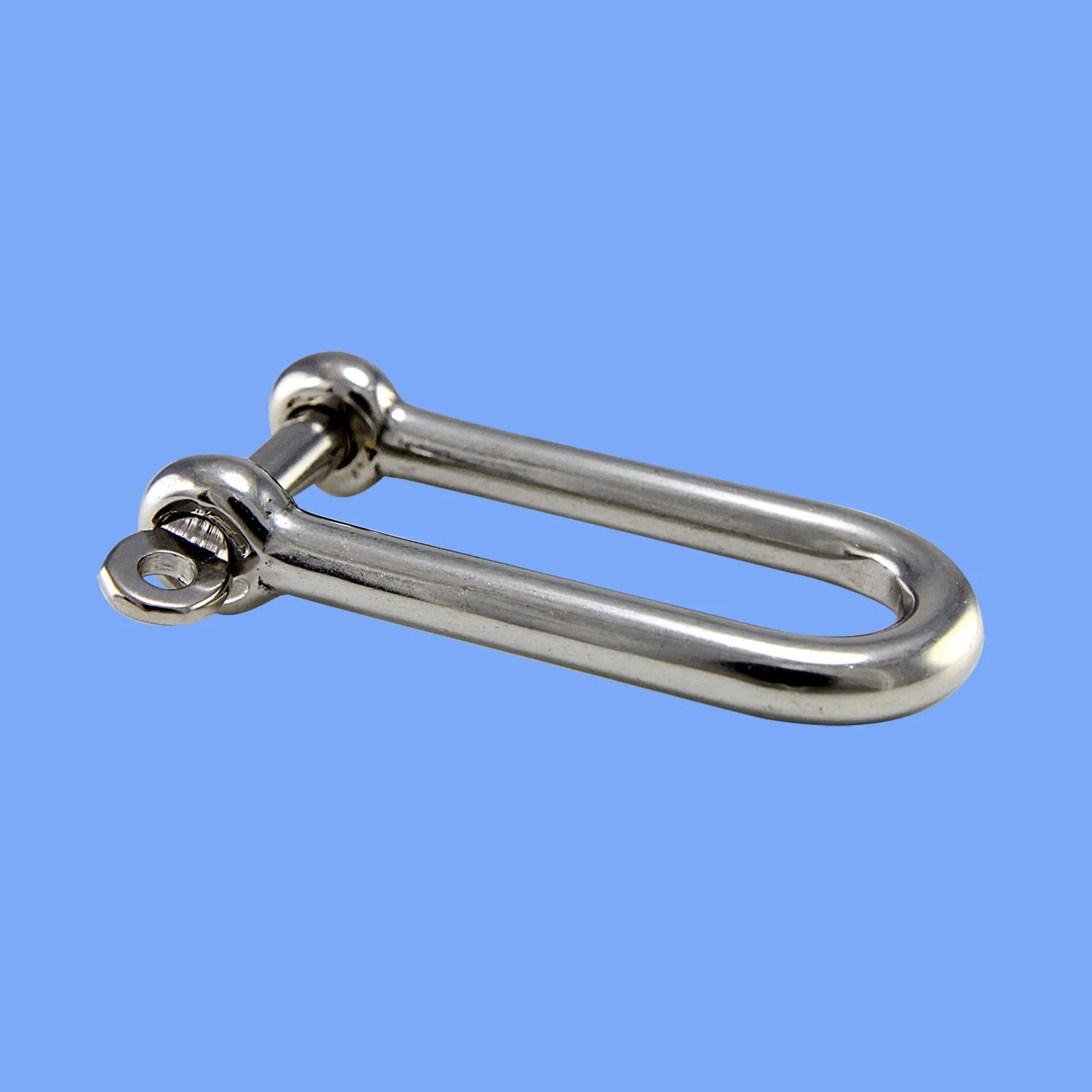

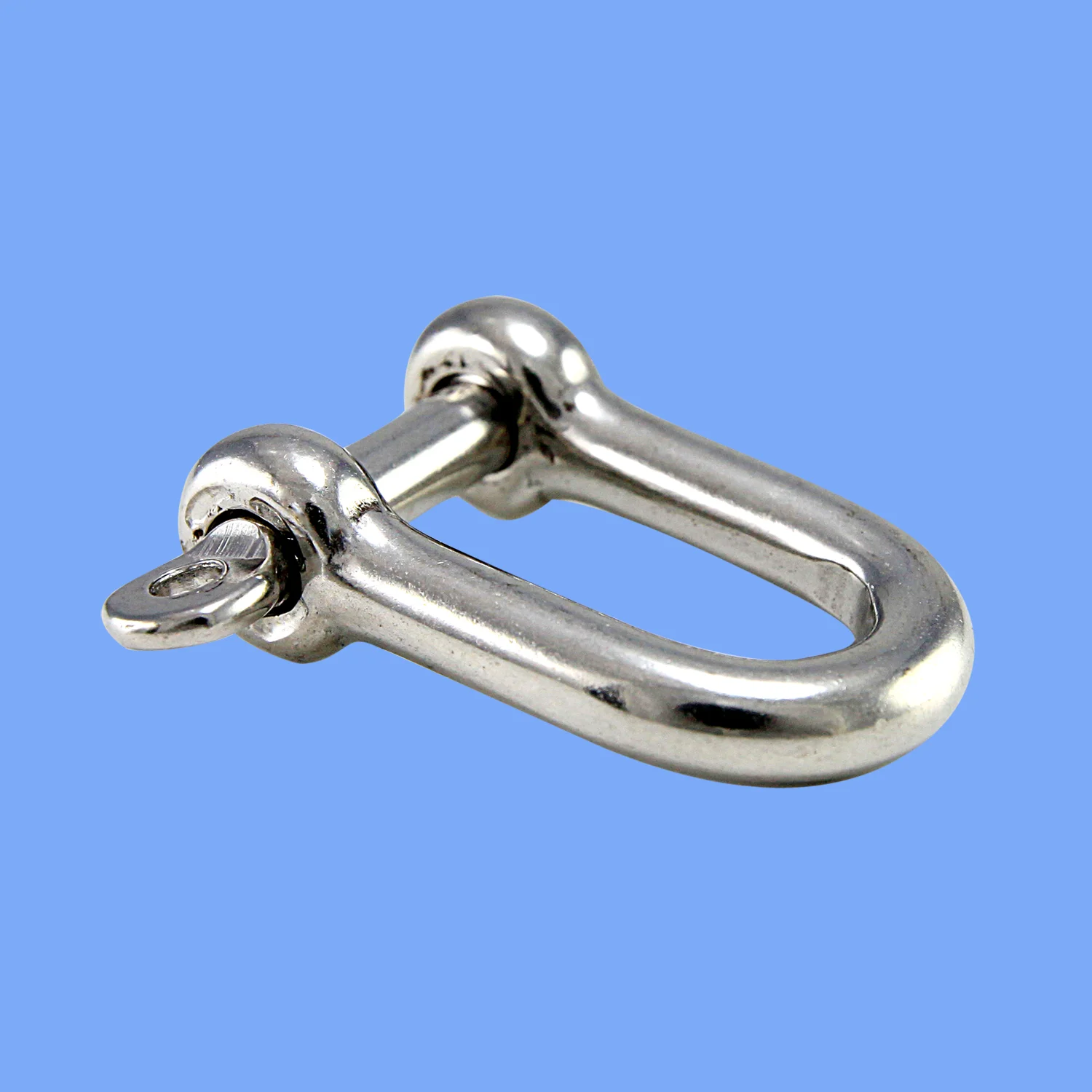

Stainless Steel Long D Shackle w/Captive Pin - Type 316
Part No. | A | B | C | D | |
---|---|---|---|---|---|
1 | T6LDSH-14C | 1/4” | 1/4” | 15/32” | 1-3/4” |
2 | T6LDSH-516C | 5/16” | 5/16” | 9/16” | 2-3/8” |
3 | T6LDSH-38C | 3/8” | 3/8” | 3/4” | 3” |
4 | T6LDSH-12C | 15/32” | 15/32” | 1” | 3-5/8” |

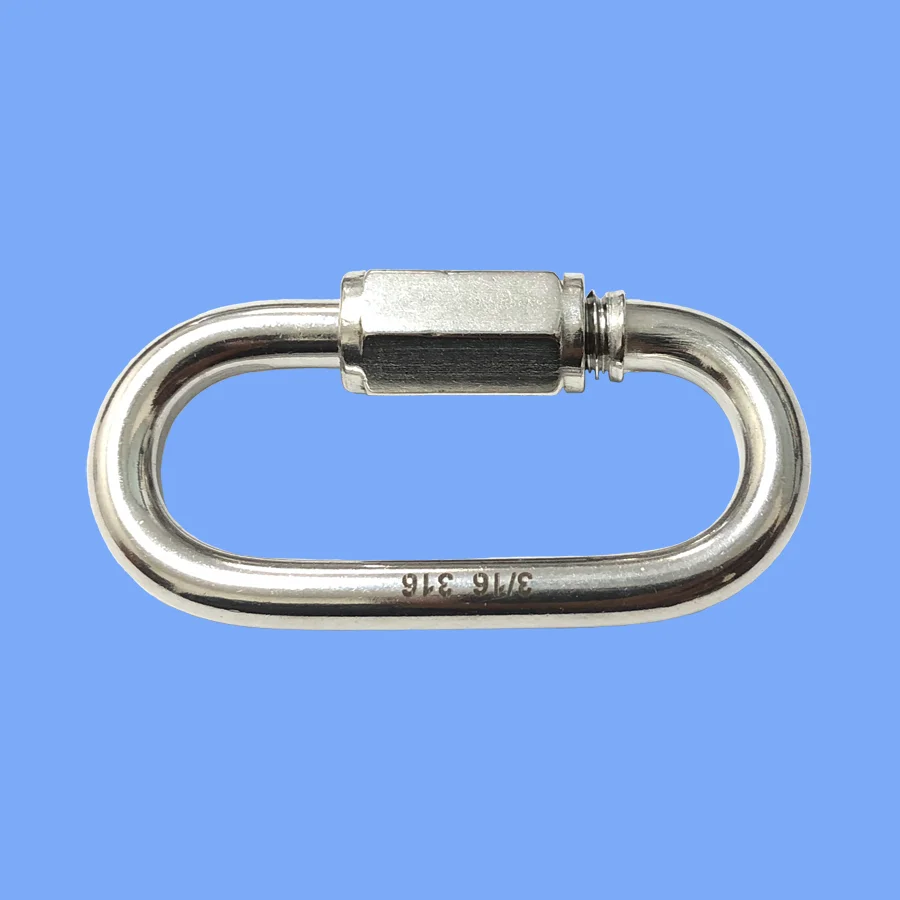

Part No. | A | B | C | D | |
---|---|---|---|---|---|
1 | T6QKL-316 | 3/16” | 1-1/2” | 1/2” | 1/4” |
2 | T6QKL-12 | 1/2” | 3-9/32” | 1” | 9/16” |
Part No. | Thread | A | B | C | D | |
---|---|---|---|---|---|---|
1 | T6LEN-14 | 1/4" | 3/16” | 1-3/16” | 5/8” | 1/2” |
2 | T6LEN-516 | 5/16” | 1/4” | 1-9/16” | 3/4” | 5/8” |
3 | T6LEN-38 | 3/8” | 5/16” | 1-7/8” | 1” | 3/4" |
Part No. | A (Thread) | B | C | |
---|---|---|---|---|
1 | T6SHEB38-4F | 3/8” | 4” | 1” |
2 | T6SHEB38-6F | 3/8” | 6” | 1” |
3 | T6SHEB38-12F | 3/8” | 12” | 1” |
Part No. | A (Thread) | B | C | D | |
---|---|---|---|---|---|
1 | T6TEB14-7FS | 1/4 | 7” | 4” | 9/16” |
2 | T6TEB516-8FS | 5/16” | 8” | 4” | 11/16” |
3 | T6TEB38-10FS | 3/8” | 10” | 4” | 1” |
4 | T6TEB38-12FS | 3/8” | 12” | 4” | 1” |
5 | T6TEB12-4FS | 1/2” | 4” | 4” | 1-9/32” |
6 | T6TEB12-8FS | 1/2” | 8” | 4” | 1-9/32” |
7 | T6TEB12-10FS | 1/2” | 10” | 4” | 1-9/32” |
8 | T6TEB12-12FS | 1/2” | 12” | 4” | 1-9/32” |
9 | T6TEB516-2FT | 5/16” | 2-3/8” | 2” | 3/4” |
10 | T6TEB38-10FT | 3/8” | 10-1/2” | 10” | 1” |
11 | T6TEB38-12FT | 3/8” | 12-1/2” | 12” | 1” |
12 | T6TEB12-4FT | 1/2” | 4-1/2” | 4” | 1-9/32”” |
13 | T6TEB12-12FT | 1/2” | 12-1/2” | 12” | 1-9/32” |
Part No. | A (Thread) | B | C | |
---|---|---|---|---|
1 | T6LEB38-3 | 3/8” | 4” | 1” |
Part No. | A (Thread) | B | C | |
---|---|---|---|---|
1 | T6TR-14-2 | 0.25” | 2.20” | 2” |
Part No. | A | H | W | |
---|---|---|---|---|
1 | T6DRING8-36 | 8mm | 36mm | 40mm |
2 | T6DRING8-68 | 8mm | 68mm | 76mm |

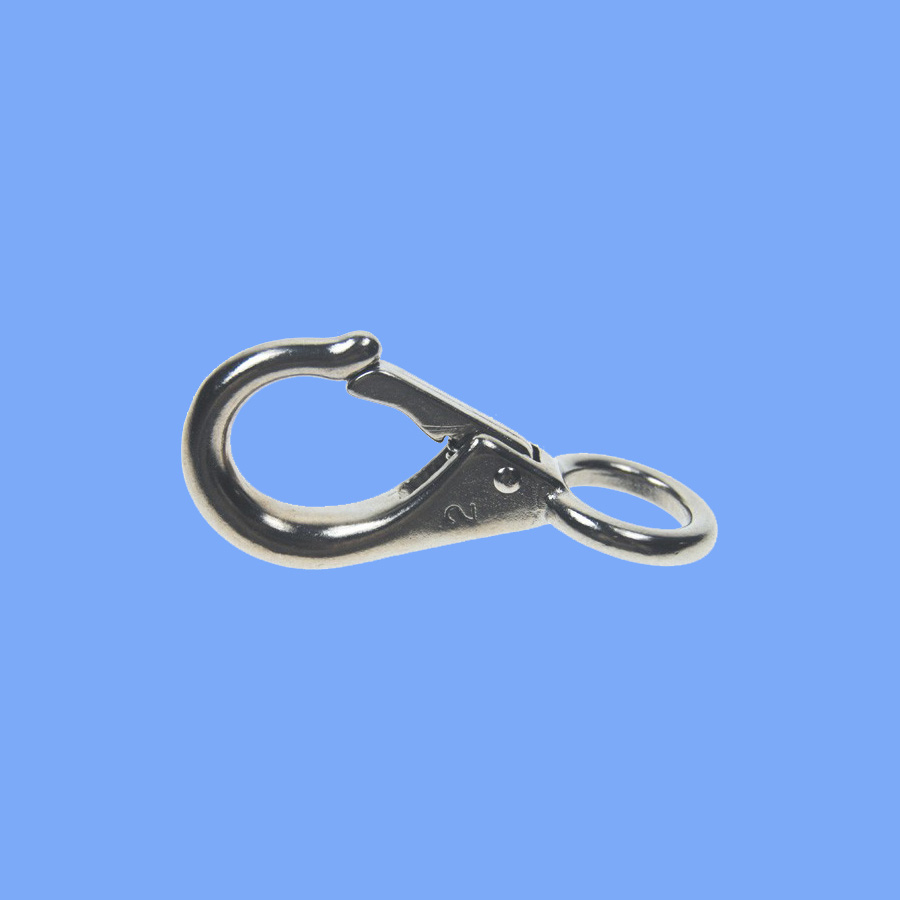

Part No. | A | B | C | E | |
---|---|---|---|---|---|
1 | T6FES53-10 | 13/32” | 2-5/32” | 7/8” | 7/16” |
Part No. | A | B | C | D | E | |
---|---|---|---|---|---|---|
1 | T6SHES-14 | 1/4" | 2-3/8” | 1-5/32” | 5/16” | 9/32” |

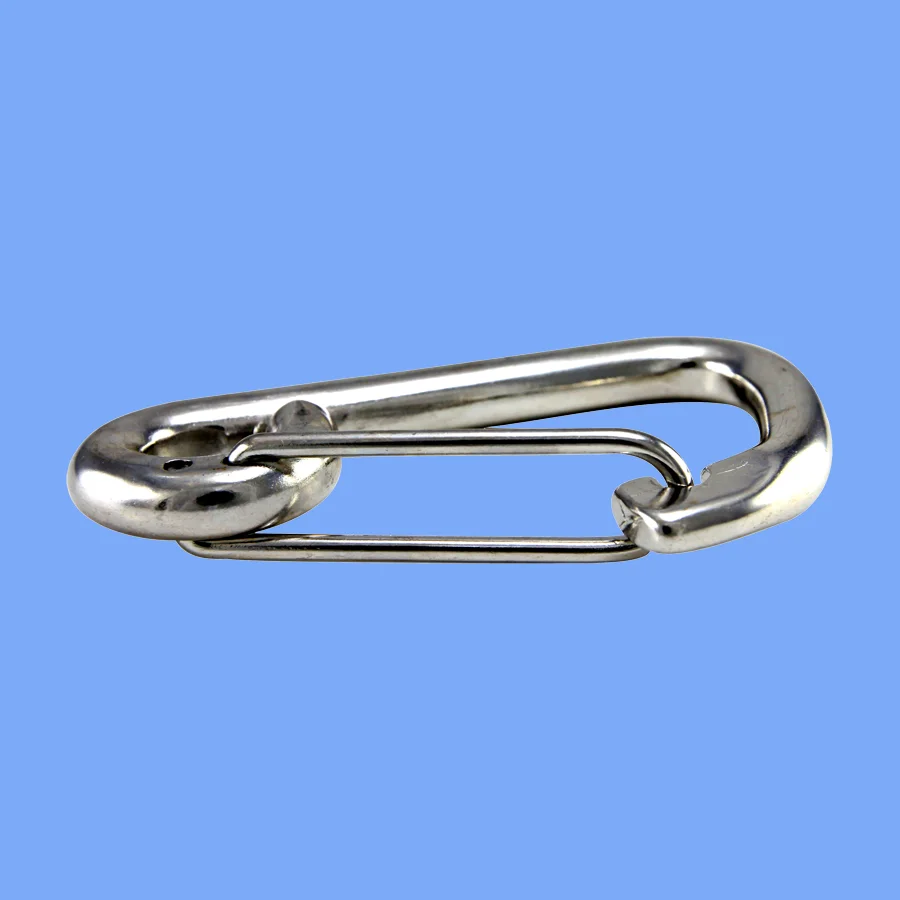

Part No. | A | B | C | L | |
---|---|---|---|---|---|
1 | T6SPGS-14R | 3/4 | 3/8” | 1/4" | 2-3/8” |
2 | T6SPGS-516R | 1-1/32” | 15/32” | 5/16” | 3-1/8” |
3 | T6SPGS-38R | 1-1/4” | 9/16” | 3/8” | 4” |
4 | T6SPGS-12 | 1-11/16” | 11/16” | 15/32” | 4-3/4” |

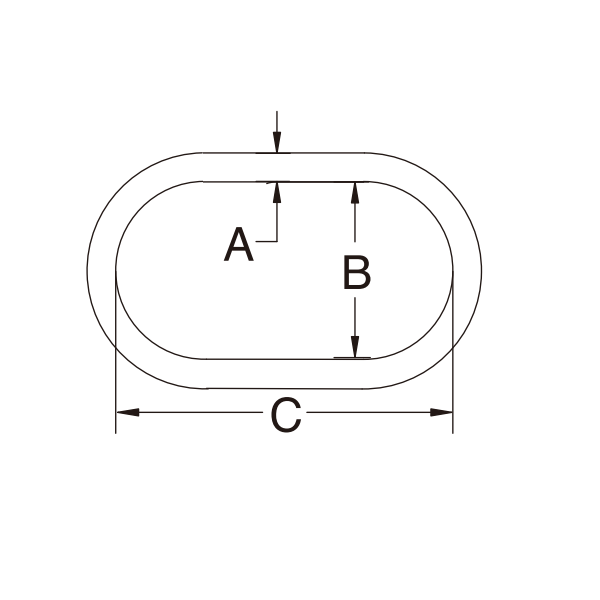

Part No. | A | B | C | WT (LB) | WLL (LB) | |
---|---|---|---|---|---|---|
1 | T6ML-38 | 3/8” | 2” | 3-1/2” | 0.40 | 1,500 |
2 | T6ML-12 | 1/2" | 2-1/2” | 4-3/4” | 0.80 | 2,000 |
3 | T6ML-58 | 5/8” | 3” | 5-3/4” | 1.38 | 2,850 |
4 | T6ML-34 | 3/4" | 3-1/2” | 6-1/2” | 2.50 | 3,800 |
5 | T6ML-78 | 7/8” | 3-5/8” | 6-3/4” | 3.50 | 5,500 |
6 | T6ML-1 | 1” | 3-1/2 | 7” | 4.80 | 7,800 |
7 | T6ML-114 | 1-1/4” | 4-1/4” | 9” | 9.20 | 11,500 |
8 | T6ML-112 | 1-1/2” | 5-1/4” | 10-3/8” | 10.20 | 54,300 |

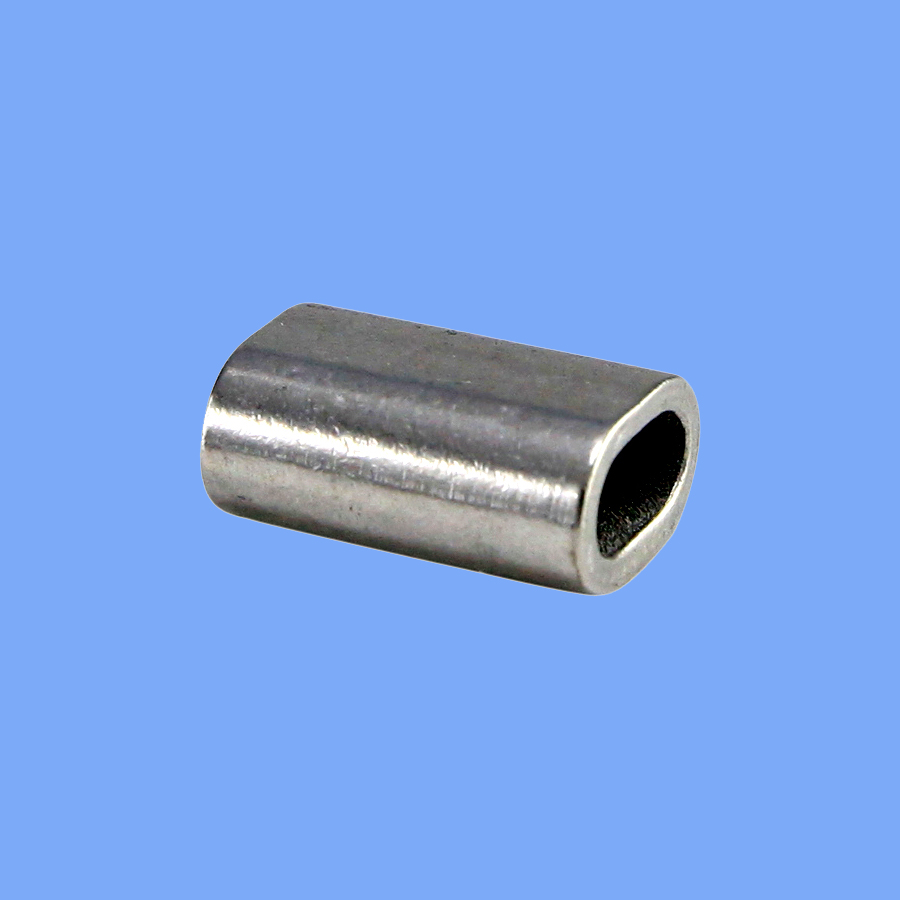

Part No. | A | B | C | L | |
---|---|---|---|---|---|
1 | T6OVSLEEVES-116C | 1/16” | 0.13” | 0.20” | 3/8” |
2 | T6OVSLEEVES-332C | 3/32” | 0.16” | 0.27” | 3/8” |
3 | T6OVSLEEVES-18C | 1/8” | 0.25” | 0.36” | 3/8” |
4 | T6OVSLEEVES-532C | 5/32” | 0.30” | 0.49” | 23/32” |
5 | T6OVSLEEVES-316C | 3/16” | 0.34” | 0.55” | 1” |
6 | T6OVSLEEVES-14C | 1/4" | 0.43” | 0.70” | 1-1/8” |
7 | T6OVSLEEVES-516C | 5/16” | 0.56” | 0.88” | 1-3/8” |
Part No. | A | B | C | L | |
---|---|---|---|---|---|
1 | T6OVSLEEVES-364 | 3/64” | 0.13” | 0.19” | 3/8” |
2 | T6OVSLEEVES-116 | 1/16” | 0.13” | 0.20” | 3/8” |
3 | T6OVSLEEVES-332 | 3/32” | 0.16” | 0.27” | 3/8” |
4 | T6OVSLEEVES-18 | 1/8” | 0.25” | 0.36” | 3/8” |
5 | T6OVSLEEVES-532 | 5/32” | 0.30” | 0.49” | 23/32” |
6 | T6OVSLEEVES-316 | 3/16” | 0.34” | 0.55” | 1” |
7 | T6OVSLEEVES-732 | 7/32” | 0.42” | 0.66” | 7/8” |
8 | T6OVSLEEVES-14 | 1/4" | 0.43” | 0.70” | 1-1/8” |
9 | T6OVSLEEVES-516 | 5/16” | 0.56” | 0.88” | 1-3/8” |
10 | T6OVSLEEVES-38 | 3/8” | 0.75” | 1.13” | 1-3/8” |
11 | T6OVSLEEVES-12 | 1/2" | 0.92” | 1.43” | 1-3/4” |

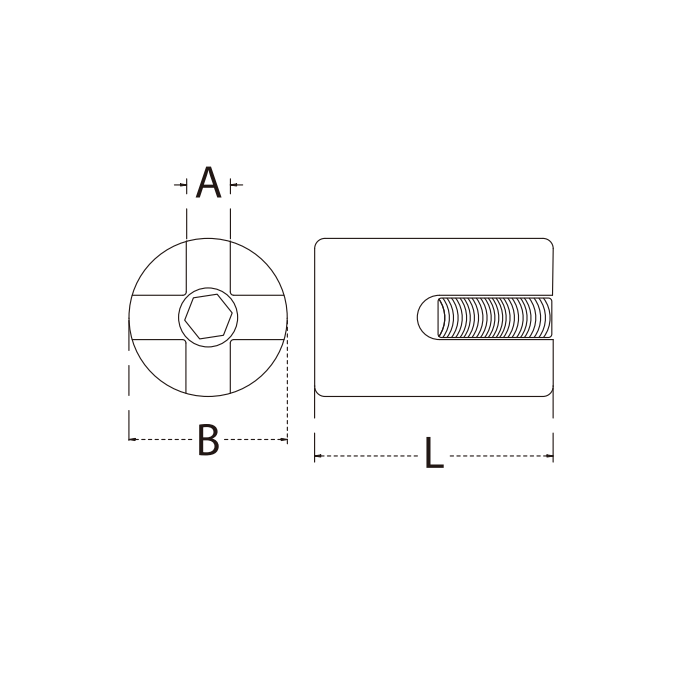

Part No. | A (Cable Size) | B | L | |
---|---|---|---|---|
1 | T6CCP-18 | 1/8" | 3/4” | 7/8” |
2 | T6CCP-316 | 3/16” | 3/4” | 7/8 |
3 | T6CCP-532 | 5/32” | 3/4" | 7/8” |
4 | T6CCP-14 | 1/4" | 3/4" | 1” |
Part No. | A | B | C | D | E | |
---|---|---|---|---|---|---|
1 | T6DRPE3-20 | 1-9/16” | 1” | 5/8” | .72” | 3/16” |
Part No. | A | B | C | D | |
---|---|---|---|---|---|
1 | T6DRS-516 | 5/16” | 1/4" | 2.05” | 2.32” |
Part No. | A | B | C | D | L | WT (LB) | WLL (LB) | |
---|---|---|---|---|---|---|---|---|
1 | T6SWPL-32 | 1-1/4” | 5/16” | 5/16” | 0.62” | 3.80” | 0.45 | 600 |
2 | T6SWPL-50 | 2” | 3/8” | 13/16” | 0.82” | 5.00” | 0.90 | 1,000 |
Part No. | A | B | C | D | WT (LB) | WLL (LB) | |
---|---|---|---|---|---|---|---|
1 | TEESW-14 | 1/4" | 9/16” | 9/16” | 2-9/16” | 0.13 | 600 |
2 | T6EESW-38 | 3/8” | 7/8” | 1” | 4-5/8” | 0.55 | 1,500 |
Part No. | A | B | DC | D | WT (LB) | WLL (LB) | |
---|---|---|---|---|---|---|---|
1 | T6JJSW-14 | 1/4” | 7/16” | 7/16” | 2-5/8” | 0.15 | 650 |
2 | T6JJSW-516 | 5/16” | 5/8” | 5/8” | 3-5/8” | 0.38 | 1,200 |
3 | T6JJSW-38 | 3/8” | 13/16” | 7/8” | 4-5/8” | 0.75 | 1,500 |
4 | T6JJSW-12 | ½” | 1” | 1-1/8” | 6” | 1.50 | 2,600 |

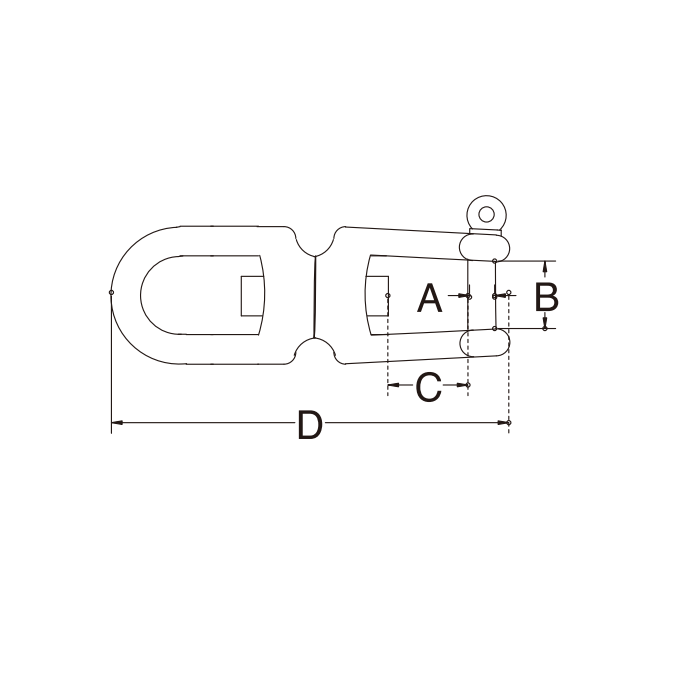

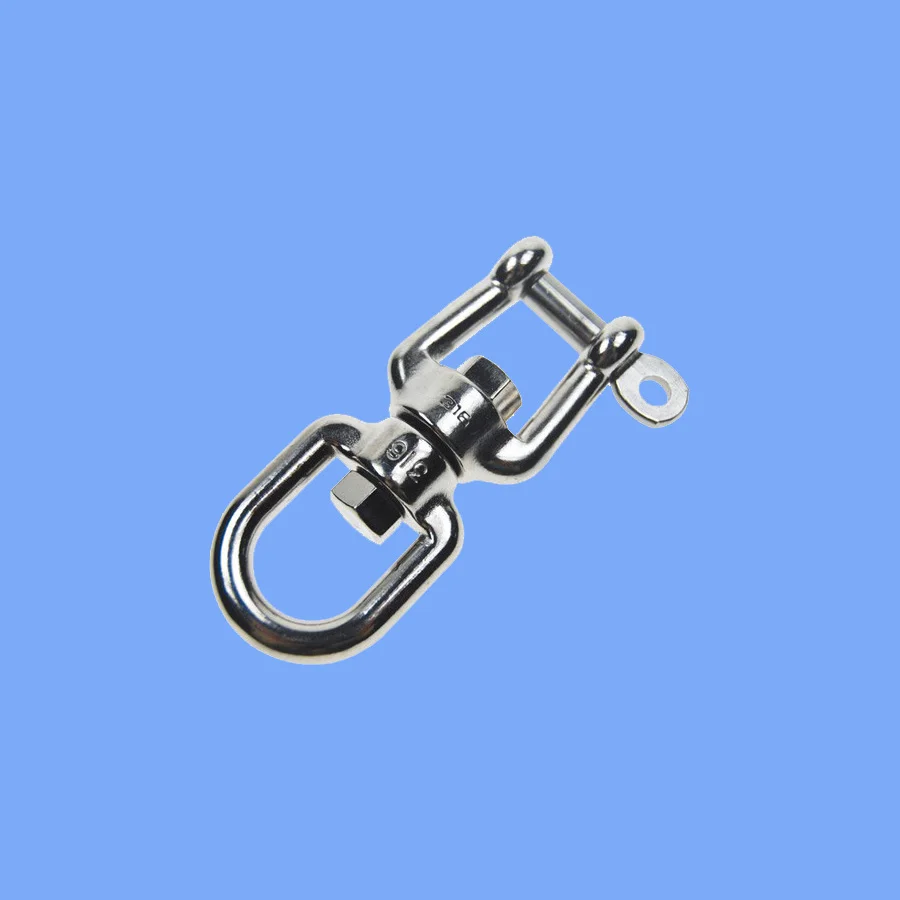

Part No. | A | B | C | D | WT (LB) | WLL (LB) | |
---|---|---|---|---|---|---|---|
1 | T6JESW-316 | 3/16” | 7/16” | 3/8” | 2-1/4” | 0.10 | 300 |
2 | T6JESW-516 | 5/16” | 5/8” | 5/8” | 3-5/8” | 0.32 | 1,200 |
