Stainless Steel Hand & Machine Swage Wrench Flat Stud - Type 316

Hand Swage

    Hand   Swage



    Part No.
    A   (Thread)
     B   (Cable Size)
    C
    L


    T6HSST14-18L (Left)
     1/4" - 20
    1/8”
    2”
    3-7/8”


    T6HSST14-18R (Right)
    1/4" - 20
    1/8”
    2”
    3-7/8”


    T6HSST14-18HSXL7.5
    1/4" - 20
    1/8”
    2”
    7-1/2”


    T6HSST14-18HSXL8.0
    1/4" - 20
    1/8”
    2”
    8”


     T6HSST14-18HSXL (Extra   Long)
    1/4" - 20
    1/8”
    2”
    10.00”


     T6HSST14-316L (Left)
    1/4" - 20
    3/16”
    2-3/8”
    4-1/4”


    T6HSST14-316R (Right)
    1/4" - 20
    3/16”
    2-3/8”
    4-1/4”


    T6HSST14-316HSXL (Extra   Long)
    1/4" - 20
    3/16”
    2-3/8”
    10.00”


     T6HSST516-14R (Right)
    5/16"   - 18
    1/4”
    3-3/16”
    5-1/2”


Machine Swage

    Machine Swage



    Part No.
    A (Thread)
    B (Cable Size)
    C
    L


    T6MSST14-18L (Left)
    1/4" - 20
    1/8”
    2"
    3-7/8”


    T6MSST14-18R (Right)
    1/4" - 20
    1/8”
    2”
    3-7/8”


    T6MSST14-316L (Left)
    1/4" - 20
    3/16”
     2-3/8”
    4-1/2”


    T6MSST14-316R (Right)
    1/4" - 20
    3/16”
    2-3/8”
    4-1/2”


    T6MSST516-316L (Left)
    5/16” - 18
    3/16”
    2-9/16”
    4-7/8”


    T6MSST516-316R (Right)
    5/16” - 18
    3/16”
    2-9/16”
    4-7/8”


    T6MSST516-14L (Left)
    5/16” - 18
    1/4"
    3-1/8”
    5-1/2”


    T6MSST516-14R (Right)
    5/16” - 18
    1/4"
    3-1/8”
    5-1/2”


    T6MSST38-316L (Left)
    3/8” - 16
    3/16”
    2-9/16”
    5-11/32”


    T6MSST38-316R (Right)
    3/8” - 16
    3/16”
    2-9/16”
    5-11/32"


    T6MSST38-14L (Left)
    3/8” - 16
    1/4”
    3-3/16”
    6”


    T6MSST38-14R (Right)
    3/8” - 16
    1/4”
    3-3/16”
    6”


    T6MSST12-516L (Left)
    1/2” - 13
    5/16”
    4”
    7-5/16”


    T6MSST12-516R (Right)
    1/2” - 13
    5/16”
    4”
    7-5/16”


    T6MSST58-38L (Left)
    5/8” - 11
    3/8”
    4-5/16”
    8-11/16”


    T6MSST58-38R (Right)
    5/8” - 11
    3/8”
    4-5/16”
    8-11/16”


    T6MSST34-12L (Left)
    3/4" - 10
    1/2"
    4-29/32”
    9-3/4”


    T6MSST34-12R (Right)
    3/4" - 10
    1/2”
    4-29/32”
    9-3/4”


Stainless Steel Hand & Machine Swage Life Line Stud - Type 316

Hand Swage


    Hand Swage



    Part No.
    A (Cable Size )
    B (Thread)
    L


    1
    T6HLSST14-18L (Left)
    1/8”
    1/4" - 20
    4-1/4”


    2
    T6HLSST14-18R (Right)
    1/8”
    1/4" - 20
    4-1/4”


    3
    T6HLSST14-18HSXL (Extra Long)
    1/8”
    1/4" - 20
    10”


    4
    T6HLSST14-18UNFL (Left)
    1/8”
    1/4" - 28
    4-1/4”


    5
    T6HLSST14-18UNFR (Right)
    1/8”
    1/4" - 28
    4-1/4”


    6
    T6HLSST14-316L (Left)
    3/16”
    1/4" - 20
    4-1/4”


    7
    T6HLSST14-316R (Right)
    3/16”
    1/4" - 20
    4-1/4”


    8
    T6HLSST14-316HSXL (Extra Long)
    3/16”
    1/4" - 20
    10”


    9
    T6HLSST14-316UNFL (Left)
    3/16”
    1/4" - 28
    4-1/4”


    10
    T6HLSST14-316UNFR (Right)
    3/16”
    1/4" - 28
    4-1/4”


    11
    T6HLSST516-14L (Left)
    1/4"
    5/16” - 18
    4-3/4”


    12
    T6HLSST516-14R (Right)
    1/4"
    5/16” - 18
    4-3/4”


    13
    T6HLSST516-14HSXL (Extra Long)
    1/4"
    5/16” - 18
    12-1/4”


    14
    T6HLSST516-14UNFL (Left)
    1/4"
    5/16” - 24
    4-3/4”


    15
    T6HLSST516-14UNFR (Right)
    1/4"
    5/16” - 24
    4-3/4”


    16
    T6HLSST38-14L (Left)
    1/4"
    3/8” - 16
    5-1/4”


    17
    T6HLSST38-14R (Right)
    1/4"
    3/8” - 16
    5-1/4”


    18
    T6HLSST38-14HSXL (Extra Long)
    1/4"
    3/8” - 16
    12-1/4”


    19
    T6HLSST38-14UNFL (Left)
    1/4"
    3/8” – 24
    5-1/4”


    20
    T6HLSST38-14UNFR (Right)
    1/4"
    3/8” - 24
    5-1/4”


Machine Swage


    Machine Swage



    Part No.
    A (Cable Size )
    B (Thread)
    L


    1
    T6MLSST14-18L (Left)
    1/8”
    1/4" - 20
    4-1/4”


    2
    T6MLSST14-18R (Right)
    1/8”
    1/4" - 20
    4-1/4”


    3
    T6MLSST14-18UNFL (Left)
    1/8”
    1/4" - 28
    4-1/4”


    4
    T6MLSST14-18UNFR (Right)
    1/8”
    1/4" - 28
    4-1/4”


    5
    T6MLSST14-316L (Left)
    3/16”
    1/4" - 20
    4-1/4”


    6
    T6MLSST14-316R (Right)
    3/16”
    1/4" - 20
    4-1/4”


    7
    T6MLSST14-316UNFL (Left)
    3/16”
    1/4" - 28
    4-1/4”


    8
    T6MLSST14-316UNFR (Right)
    3/16”
    1/4" - 28
    4-1/4”


    9
    T6MLSST516-316R (Right)
    3/16”
    5/16”-18
    2-1/8”


    10
    T6MLSST516-14L (Left)
    1/4"
    5/16” - 18
    4-3/4”


    11
    T6MLSST516-14R (Right)
    1/4"
    5/16” - 18
    4-3/4”


    12
    T6MLSST516-14HSXL (Extra Long)
    1/4"
    5/16” - 18
    12-1/4”


    13
    T6MLSST516-14UNFL (Left)
    1/4"
    5/16” - 24
    4-3/4”


    14
    T6MLSST516-14UNFR (Right)
    1/4"
    5/16” - 24
    4-3/4”


    15
    T6MLSST516-14UNFXLR (Extra Long) (Right)
    1/4”
    5/16”-24
    12-1/4”


    16
    T6MLSST38-14L (Left)
    1/4"
    3/8” - 16
    5-1/4”


    17
    T6MLSST38-14R (Right)
    1/4"
    3/8” - 16
    5-1/4”


    18
    T6MLSST38-14HSXL (Extra Long)
    1/4"
    3/8” - 16
    12-1/4”


    19
    T6MLSST38-14UNFL (Left)
    1/4"
    3/8” – 24
    5-1/4”


    20
    T6MLSST38-14UNFR (Right)
    1/4"
    3/8” - 24
    5-1/4”


Stainless Steel Hand Swage Lag Studs - Stainless Steel - Type 316



    Part No.
    A (Cable Size )
    B
    C
    L


    1
    T6HLST-18 (Right)
    1/8”
    2”
    1.35”
    4”


    2
    T6HLST-18L (Left)
    1/8”
    2”
    1.35”
    4”


    3
    T6HLST-316 (Right)
    3/16”
    2”
    2”
    4-3/8”


    4
    T6HLST-316L (Left)
    3/16”
    2”
    2”
    4-3/8”


    5
    T6HLST-316A (Right)
    3/16”
    2” (3/8” THREAD)
    2”
    4-3/8”


Stainless Steel Hand & Machine Swage Angle Stud (Lock T) - Type 316


    Hand Swage



    Part No.
    B (Cable Size )
    L
    L1
    D1
    D2


    1
    T6HAST-18
    1/8”
    1-1/2”
    3/4"
    1/4"
    1/8”


    2
    T6HAST-316
    3/16”
    1-1/2”
    3/4"
    3/8”
    3/16”











    Machine Swage



    Part No.
    B (Cable Size )
    L
    L1
    D1
    D2


    1
    T6MAST-18
    1/8”
    1-1/2”
    3/4"
    1/4”
    1/8”


    2
    T6MAST-316
    3/16”
    1-1/2”
    ¾”
    3/8”
    3/16”


Stainless Steel Hand Swage Adjustable Stud - Type 316

Machine Swage Adjustable Stud Stainless Steel T316 T6MADST (2).jpg

Machine Swage Adjustable Stud Stainless Steel T316 T6MADST.png

    Hand Swage



    Part No.
    A (Cable Size)
    B
    C
    D
    L


    T6HADST14-18
    1/8”
    1/4"-20
    1-3/4”
    0.25”
    3-1/2”


    T6HASDST14-316
    3/16”
    1/4”-20
    1-3/4”
    0.35”
    4”


    T6HADST516-14
    1/4”
    5/16”-18
    2”
    0.49"
    4-5/8”


Stainless Steel Machine Swage Adjustable Stud - Type 316

    Machine Swage



    Part No.
    A (Cable Size)
    B
    C
    D
    L


    T6MADST14-18
    1/8”
    1/4"-20
    1-3/4”
    0.25”
    3-1/2”


    T6MASDST14-316
    3/16”
    1/4”-20
    1-3/4”
    0.35”
    4”


    T6MADST516-14
    1/4”
    5/16”-18
    2”
    0.49"
    4-5/8”


Stainless Steel Machine Swage Rescue Stud - Type 316



    Part No.
    A (Cable Size )
    D
    E
    F
    L


    1
    T6MRSCST-18
    1/8”
    1.12”
    0.25”
    0.21”
    3.45”


    2
    T6MRSCST-316
    3/16”
    1.12”
    0.30”
    0.25”
    3.45”


    3
    T6MRSCST-14
    1/4”
    1.12”
    0.42”
    0.38”
    3.45”

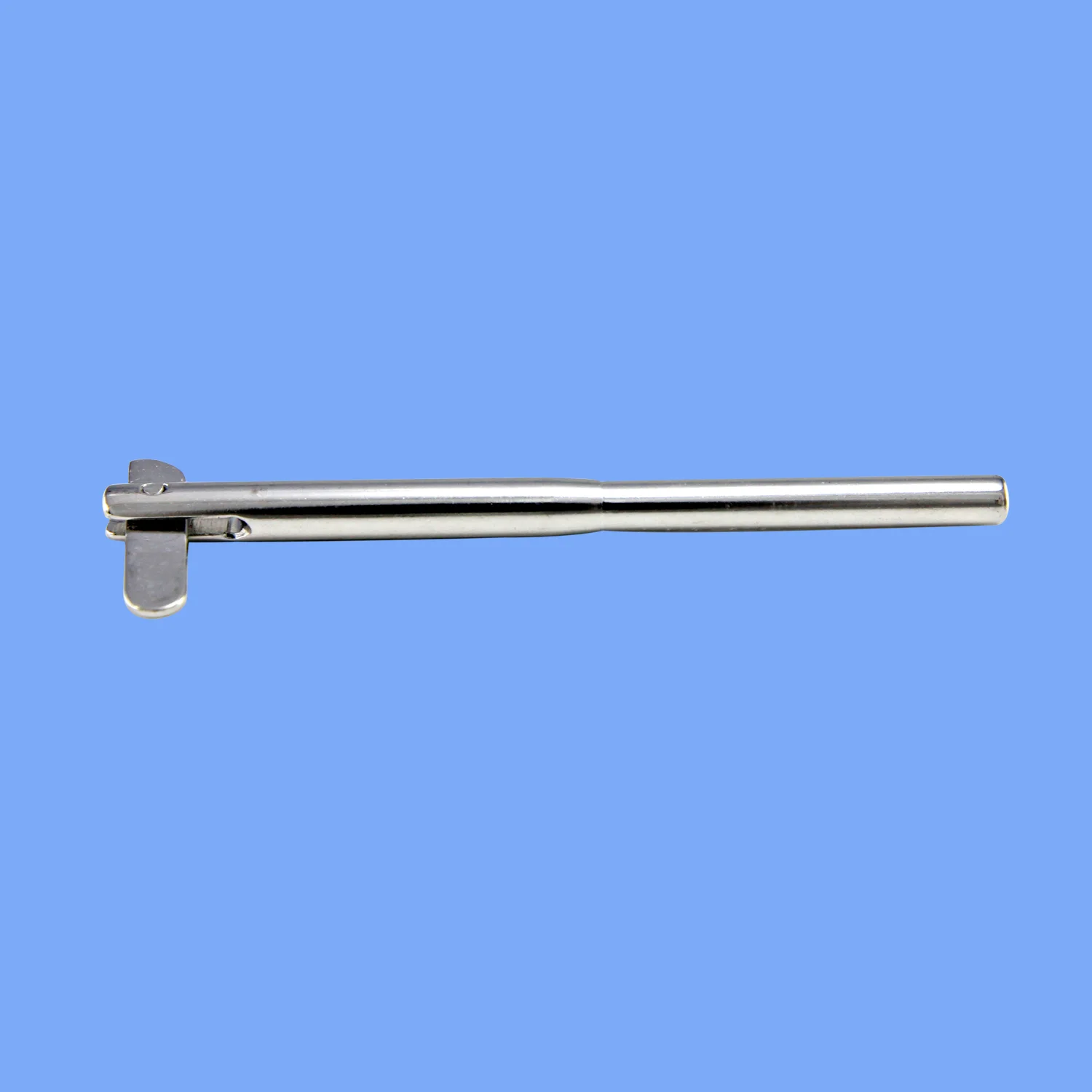

Stainless Steel Hand Swage Drop Pin Stud - Type 316



    Part No.
    A (Cable Size )
    H
    L


    1
    T6HDPST-18
    1/8”
    1/4”
    3-3/4”


    2
    T6HDPST-316
    3/16”
    1/4"
    4”


Stainless Steel Hand & Machine Swage Marine Eye - Type 316

    Hand Swage



    Part No.
    A (Cable Size )
    B
    C
    D


    T6HEST-18
    1/8”
    1/4"
    5/32”
    2-3/8”


    T6HEST-316
    3/16”
    3/8"
    1/4”
    3-7/16”


    T6HEST-14
    1/4”
    1/2”
    5/16”
    3-15/16”


Hand & Machine Swage Marine Eye Stainless Steel T316 T6HEST copy.png

       Machine Swage



    Part No.
    A (Cable Size)
    B
    C
    D


    T6MEST-116
    1/16”
    3/16”
    3/32”
    1-5/8”


    T6MEST-332
    3/32
    13/64”
    5/32”
    2”


    T6MEST-18
    1/8”
    1/4'
    5/32”
    2-5/16”


    T6MEST-532
    5/32”
    21/64”
    1/4"
    3”


    T6MEST-316
    3/16”
    3/8”
    1/4"
    3-5/16”


    T6MEST-14
    1/4”
    1/2"
    5/16”
    3-15/16”


    T6MEST-516
    5/16”
    9/16”
    3/8”
    5-77/128”


    T6MEST-38
    3/8”
    5/8”
    15/32”
    5-29/32”


    T6MEST-12
    1/2"
    3/4"
    19/32”
    7-1/32”


Stainless Steel Dome Swage Fittings - Type 316


    Hand Swage



    Part No.
    D (Cable Size )
    A
    L


    1
    T6HDOME-18
    1/8”
    5/8”
    2-1/4”


    2
    T6HDOME-18P (Plain Head)
    1/8”
    5/8”
    2-1/4”


    3
    T6HDOME-316
    3/16”
    5/8”
    2-3/8”


    4
    T6HDOME-316P (Plain Head)
    3/16”
    5/8”
    2-3/8”


    5
    T6HDOME-14
    1/4”
    11/16”
    2-13/16”


    6
    T6HDOME-14P (Plain Head)
    1/4”
    11/16”
    2-13/16”









    Machine Swage



    Part No.
    D (Cable Size )
    A
    L


    1
    T6MDOME-18
    1/8”
    5/8”
    2-1/4”


    2
    T6MDOME-18P (Plain Head)
    1/8”
    5/8”
    2-1/4”


    3
    T6MDOME-316
    3/16”
    5/8”
    2-1/4”


    4
    T6MDOME-316P (Plain Head)
    3/16”
    5/8”
    2-1/4”


    5
    T6MDOME-14
    1/4”
    5
    2-13/16”


    6
    T6MDOME-14P (Plain Head)
    1/4”
    5
    2-13/16”


Stainless Steel Hand & Machine Swage Stemball Fittings - Type 316

Metal Post


    Hand Swage

    Part No.
    D (Cable Size )
    L

    1
    T6HSTEM-18M (Metal Post)
    1/8”
    1-3/8”

    2
    T6HSTEM-316M (Metal Post)
    3/16”
    1-5/8”

    3
    T6HSTEM-14M (Metal Post)
    1/4”
    2”

    Machine Swage

    Part No.
    D (Cable Size )
    A

    1
    T6MSTEM-18M (Metal Post)
    1/8”
    1-3/8”

    2
    T6MSTEM-316M (Metal Post)
    3/16”
    1-5/8”

    3
    T6MSTEM-14M (Metal Post)
    1/4”
    2”

Wood Post


    Hand Swage

    Part No.
    D (Cable Size )
    L

    1
    T6HSTEM-18W (Wood Post)
    1/8”
    1-3/8”

    2
    T6HSTEM-316W (Wood Post)
    3/16”
    1-5/8”

    3
    T6HSTEM-14W (Wood Post)
    1/4”
    2”

    Machine Swage

    Part No.
    D (Cable Size )
    A

    1
    T6MSTEM-18W (Wood Post)
    1/8”
    1-3/8”

    2
    T6MSTEM-316W (Wood Post)
    3/16”
    1-5/8”

    3
    T6MSTEM-14W (Wood Post)
    1/4”
    2”
