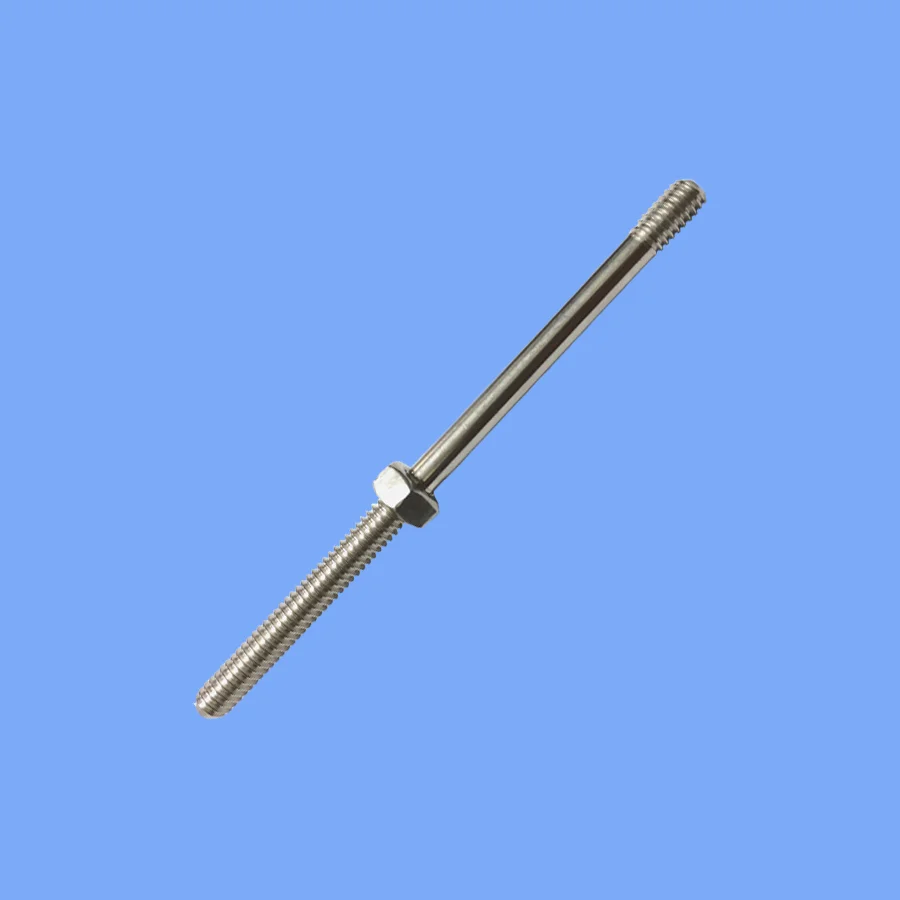

Stainless Steel Threaded Rod - Type 316



    Part No.
    T (Thread )
    A
    D
    L


    1
    T6THR-14L (Left)
    1/4”-20
    2”
    1/2”
    4-1/2”


    2
    T6THR-14R (Right)
    1/4”-20
    2”
    1/2"
    4-1/2”


    3
    T6THR-14UNFR (Right)
    1/4”-20
    2”
    1/2"
    4-1/2”


    4
    T6THR-516L (Left)
    5/16”-18
    2-5/16”
    1/2"
    4-3/4”


    5
    T6THR-516R (Right)
    5/16”-18
    2-5/16”
    1/2"
    4-3/4”


    6
    T6THR-516UNFR (Right)
    5/16”-18
    2-5/16”
    1/2"
    4-3/4”


    7
    T6THR-38L (Left)
    3/8”-16
    2-9/16”
    9/16”
    5-1/8”


    8
    T6THR-38R (Right)
    3/8”-16
    2-9/16”
    9/16”
    5-1/8”

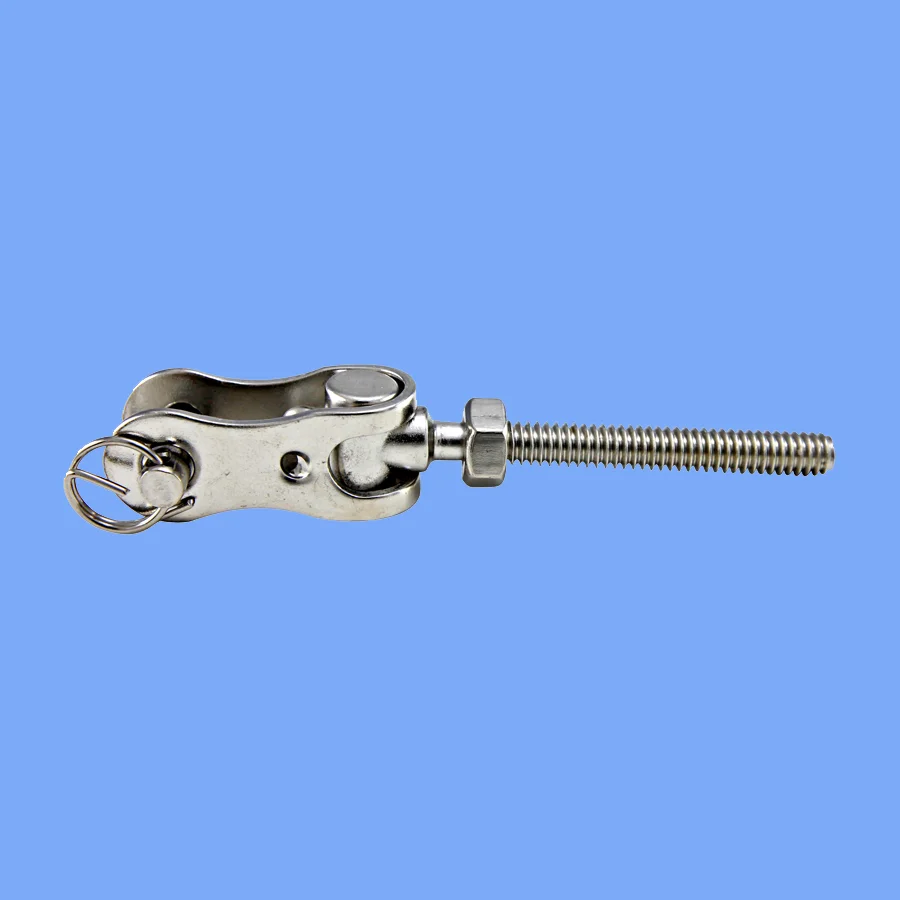

Stainless Steel Thread Toggle - Type 316



    Part No.
    B (Thread )
    A
    C
    D
    E


    1
    T6TTHR-14L (Left)
    1/4”-20
    0.40”
    3.50”
    0.23”
    0.70”


    2
    T6TTHR-14R (Right)
    1/4”-20
    0.40”
    3.50”
    0.23”
    0.70”


    3
    T6TTHR-14UNFL (Left)
    1/4"-28
    0.40”
    3.50”
    0.23”
    0.70”


    4
    T6TTHR-14UNFR (Right)
    1/4”-28
    0.40”
    3.50”
    0.23”
    0.70”


    5
    T6TTHR-516L (Left)
    5/16”-18
    0.53”
    4”
    0.31”
    0.73”


    6
    T6TTHR-516R (Right)
    5/16”-18
    0.53”
    4”
    0.31”
    0.73”

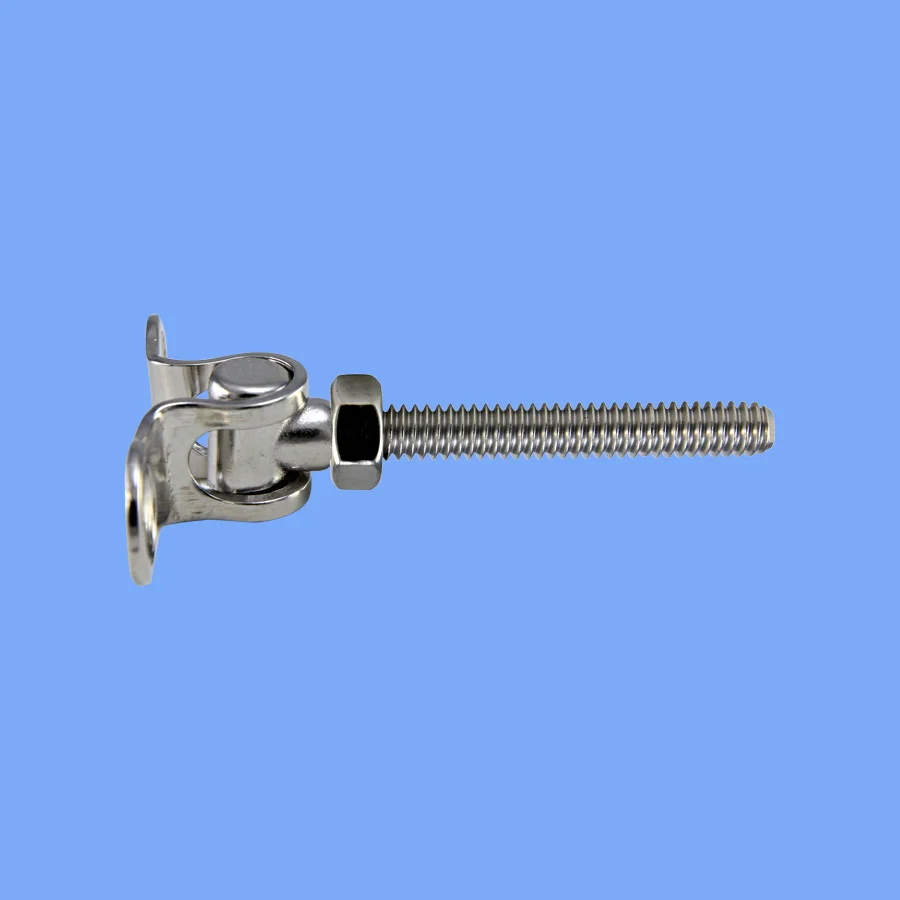

Stainless Steel Threaded Toggle - Type 316



    Part No.
    A (Thread )
    C
    E
    L


    1
    T6DTHR-14L (Left)
    1/4”-20
    1.30”
    0.25”
    3”


    2
    T6DTHR-14R (Right)
    1/4”-20
    1.30”
    0.25”
    3”


    3
    T6DTHR-14UNFL (Left)
    1/4”-28
    1.30”
    0.25”
    3”


    4
    T6DTHR-14UNFR (Right)
    1/4”-28
    1.30”
    0.25”
    3”


    5
    T6DTHR-516L (Left)
    5/16”-18
    1.65”
    0.36”
    3.50”


    6
    T6DTHR-516R (Right)
    5/16”-18
    1.65”
    0.36”
    3.50”


Stainless Steel Threaded Jaw - Type 316



    Part No.
    A (Thread)
    B
    C
    D
    L


    1
    T6JTHR-316L (Left)
    3/16”
    0.19”
    0.28
    0.43”
    2.50”


    2
    T6JTHR-316R (Right)
    3/16”
    0.19”
    0.28
    0.43”
    2.50”


    3
    T6JTHR-14L (Left)
    1/4”
    0.25”
    0.45”
    0.40”
    2.90”


    4
    T6JTHR-14R (Right)
    1/4”
    0.25”
    0.45”
    0.40”
    2.90”


    5
    T6JTHR-516L (Left)
    5/16”
    0.31”
    0.45”
    0.47”
    3.20”


    6
    T6JTHR-516R (Right)
    5/16”
    0.31”
    0.45”
    0.47”
    3.20”


    7
    T6JTHR-38L (Left)
    3/8”
    0.34”
    0.50”
    0.50”
    4.30”


    8
    T6JTHR-38R (Right)
    3/8”
    0.34”
    0.50”
    0.50”
    4.30”


    9
    T6JTHR-12L (Left)
    1/2”
    0.46”
    0.58”
    0.84”
    4.82”


    10
    T6JTHR-12R (Right)
    1/2”
    0.46”
    0.58”
    0.84”
    4.82”


    11
    T6JTHR-58L (Left)
    5/8”
    0.62”
    0.71”
    1”
    6.00”


    12
    T6JTHR-58R (Right)
    5/8”
    0.62”
    0.71”
    1”
    6.00”

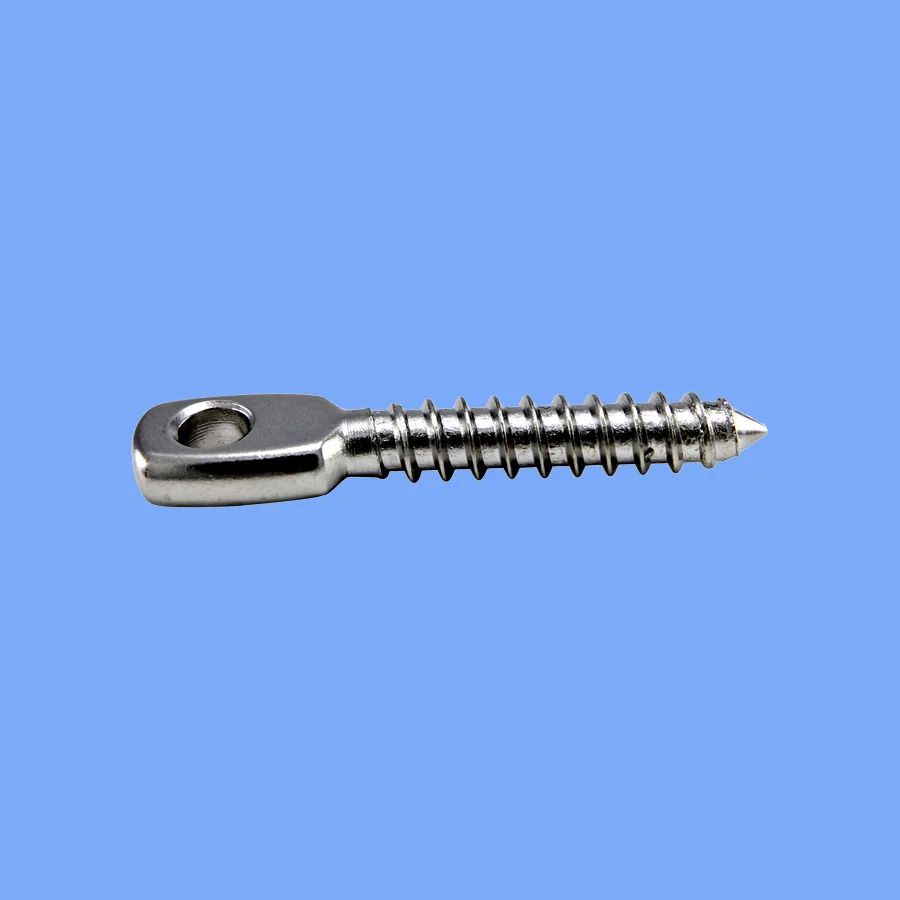

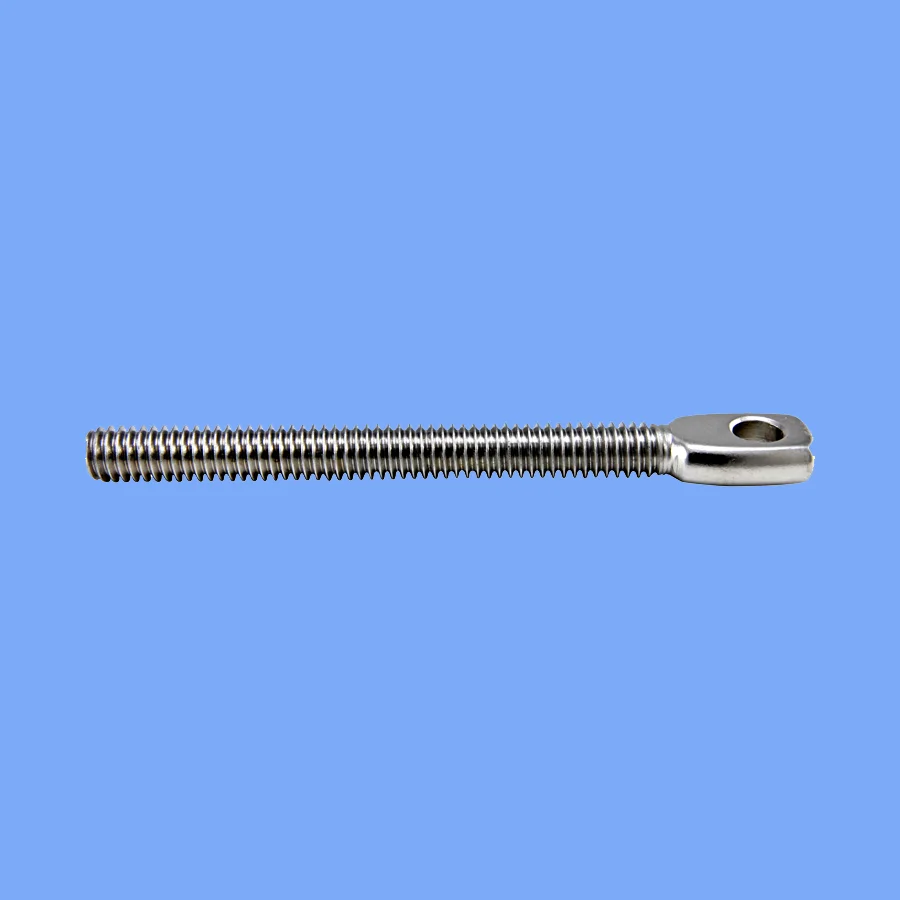

Stainless Steel Threaded Eye Tab - Type 316



    Part No.
    A (Thread )
    B
    C
    D
    T
    L


    1
    T6TRET516-114UNF
    5/16”-24
    0.50”
    0.25”
    0.23”
    0.38”
    1.25”


    2
    T6TRET516-14
    5/16”-18
    0.50”
    0.25”
    0.23”
    0.38”
    1.25”


    3
    T6TRET516-38
    5/16”-18
    0.50
    0.25”
    0.23”
    3”
    3.80”


    4
    T6TRLET516-28LAG
    5/16”-LAG
    0.50
    0.25”
    0.23”
    1.50”
    2.30”


Stainless Steel Threaded Lag (Hanger Bolt) - Type 316



    Part No.
    D (Thread )
    A
    B
    C


    1
    T6LHR-14L (Left)
    UNC 1/4"
    3-3/4”
    1-3/4”
    1-1/2”


    2
    T6LHR-14R (Right)
    UNC 1/4"
    3-3/4”
    1-3/4”
    1-1/2”

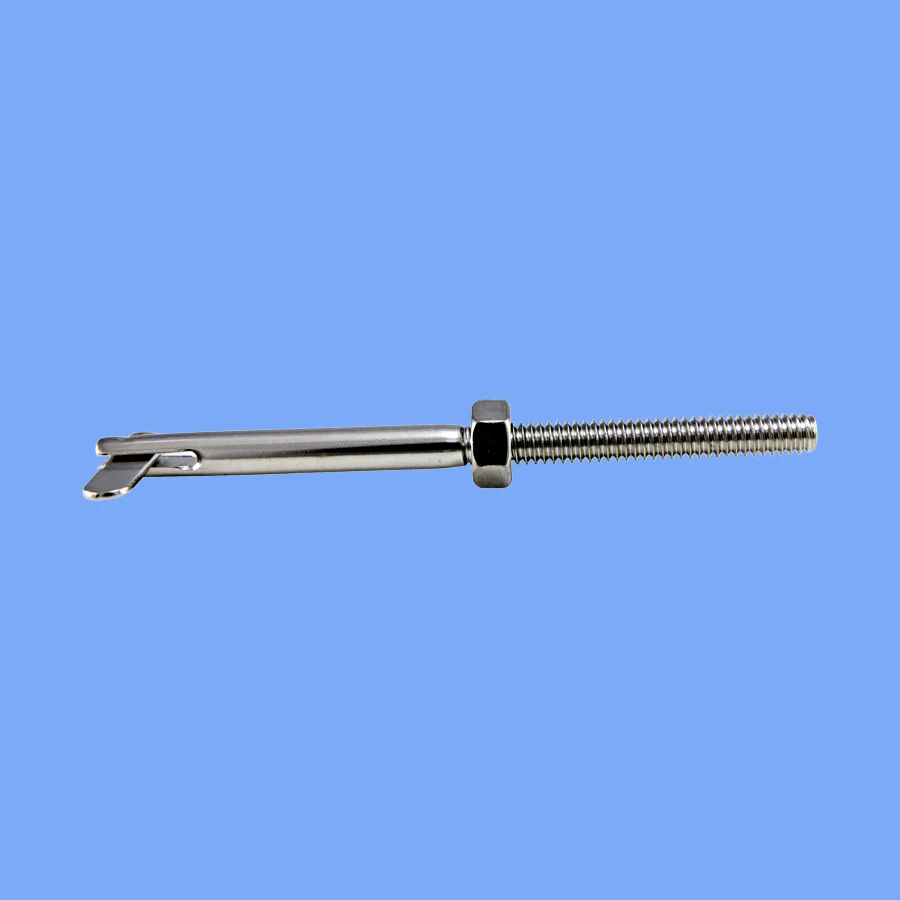

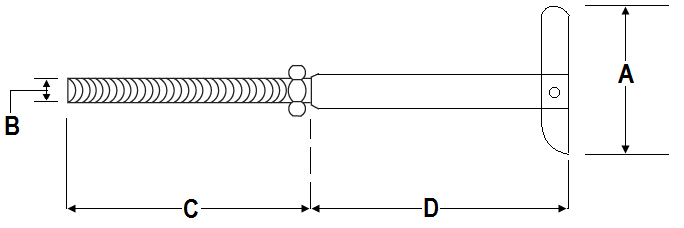

Stainless Steel Threaded Drop Pin - Type 316



    Part No.
    B (Thread )
    A
    C
    D


    1
    T6DPTHR-14R (Right)
    1/4"-20
    1”
    1-7/8”
    2”
