Stainless Steel Invisible Receiver and Hand & Machine Swage Stud - Type 316

Receiver



    Part No.
    T (Thread )
    A
    D
    L


    1
    T6RCVR14-18/316
    1/4"-20
    0.70”
    0.38”
    2-3/16”


    2
    T6RCVR516-14
    5/16”-18
    0.70
    0.48”
    2-3/16”


    3
    T6RCVR38-14
    3/8”-16
    0.70”
    0.48”
    2-3/16”

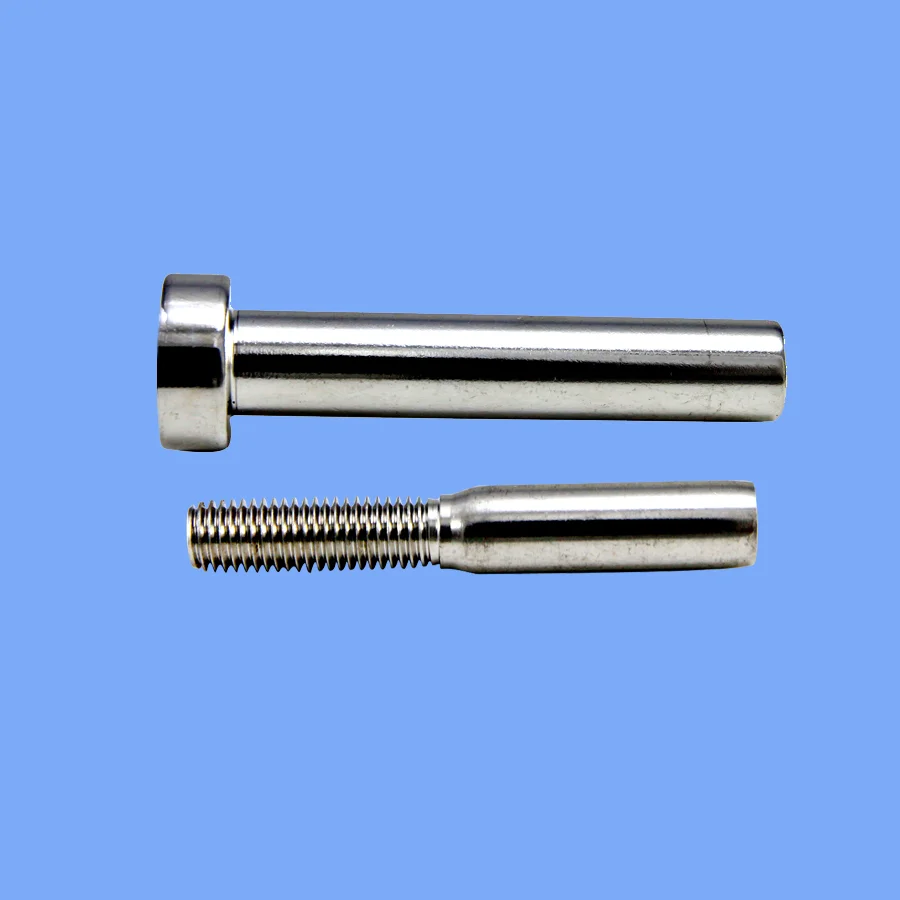

Invisible Hand & Machine Swage Stud


    Hand Swage

    Part No.
    A (Cable Size )
    B (Thread)
    L

    1
    T6HSST14-18INV
    1/8”
    1/4”-20
    2-3/4”

    2
    T6HSST14-316INV
    3/16”
    1/4”-20
    2-3/4”

    3
    T6HSST516-14INV
    1/4"
    5/16”-18
    2-3/4”

    4
    T6HSST38-14INV
    1/4"
    3/8”-16
    2-3/4”

    Machine Swage

    Part No.
    A (Cable Size )
    B (Thread)
    L

    1
    T6MSST14-18INV
    1/8”
    1/4”-20
    2-3/4”

    2
    T6MSST14-316INV
    3/16”
    1/4”-20
    2-3/4”

Stainless Steel Dome Swage Fittings - Type 316


    Hand Swage



    Part No.
    D (Cable Size )
    A
    L


    1
    T6HDOME-18
    1/8”
    5/8”
    2-1/4”


    2
    T6HDOME-18P (Plain Head)
    1/8”
    5/8”
    2-1/4”


    3
    T6HDOME-316
    3/16”
    5/8”
    2-3/8”


    4
    T6HDOME-316P (Plain Head)
    3/16”
    5/8”
    2-3/8”


    5
    T6HDOME-14
    1/4”
    11/16”
    2-13/16”


    6
    T6HDOME-14P (Plain Head)
    1/4”
    11/16”
    2-13/16”









    Machine Swage



    Part No.
    D (Cable Size )
    A
    L


    1
    T6MDOME-18
    1/8”
    5/8”
    2-1/4”


    2
    T6MDOME-18P (Plain Head)
    1/8”
    5/8”
    2-1/4”


    3
    T6MDOME-316
    3/16”
    5/8”
    2-1/4”


    4
    T6MDOME-316P (Plain Head)
    3/16”
    5/8”
    2-1/4”


    5
    T6MDOME-14
    1/4”
    5
    2-13/16”


    6
    T6MDOME-14P (Plain Head)
    1/4”
    5
    2-13/16”


Stainless Steel Hand & Machine Swage Stemball Fittings - Type 316

Metal Post


    Hand Swage

    Part No.
    D (Cable Size )
    L

    1
    T6HSTEM-18EB (Metal Post)
    1/8”
    1-3/8”

    2
    T6HSTEM-316EB (Metal Post)
    3/16”
    1-5/8”

    3
    T6HSTEM-14EB (Metal Post)
    1/4”
    2”

    Machine Swage

    Part No.
    D (Cable Size )
    A

    1
    T6MSTEM-18EB (Metal Post)
    1/8”
    1-3/8”

    2
    T6MSTEM-316EB (Metal Post)
    3/16”
    1-5/8”

    3
    T6MSTEM-14EB (Metal Post)
    1/4”
    2”

Wood Post


    Hand Swage

    Part No.
    D (Cable Size )
    L

    1
    T6HSTEM-18 (Wood Post)
    1/8”
    1-3/8”

    2
    T6HSTEM-316 (Wood Post)
    3/16”
    1-5/8”

    3
    T6HSTEM-14 (Wood Post)
    1/4”
    2”

    Machine Swage

    Part No.
    D (Cable Size )
    A

    1
    T6MSTEM-18 (Wood Post)
    1/8”
    1-3/8”

    2
    T6MSTEM-316 (Wood Post)
    3/16”
    1-5/8”

    3
    T6MSTEM-14 (Wood Post)
    1/4”
    2”

Stainless Steel Streamline Fittings - Type 316

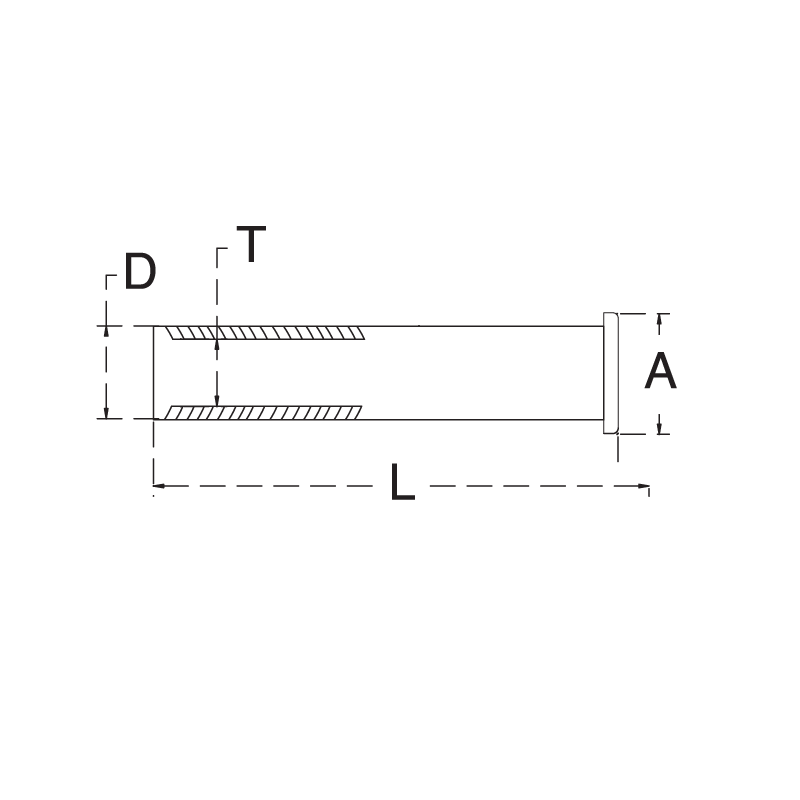

Receivers

    Part No.
    A
    D
    T (Thread)
    L1

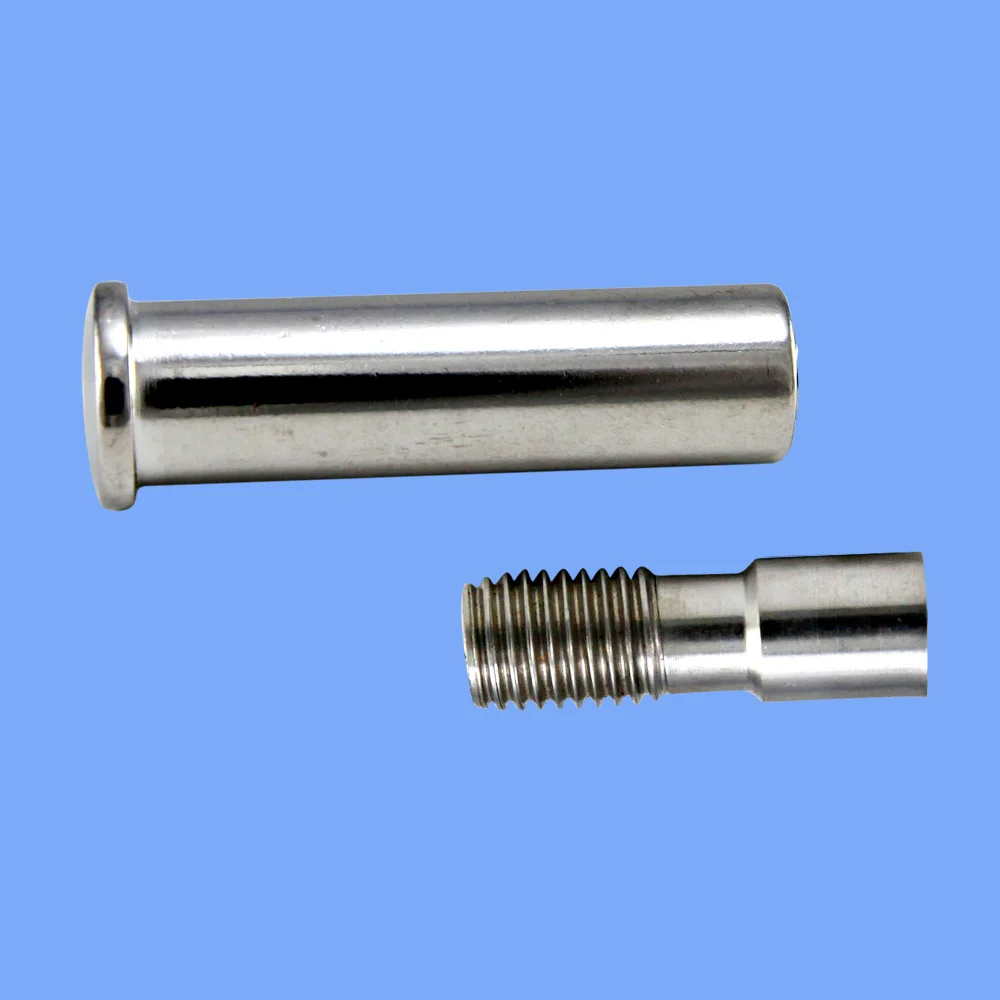

    T6STRBODY516-1.5
    0.53”
    0.43”
    5/16”-24
    1-1/2”


    T6STRBODY516-1.75
    0.53”
    0.43”
    5/16”-24
    1-3/4”


    T6STRBODY516-2
    0.53”
    0.43”
    5/16”-24
    2”


    T6STRBODY516-3
    0.53”
    0.43”
    5/16”-24
    3”


Machine Swage Stud

    Part No.
    L
    M (Cable)
    T (Thread)



    T6STREAMLINESTUD-18
    1”
    1/8”
    5/16”-24


    T6STREAMLINESTUD-316
    1”
    3/16”
    5/16”-24


    T6STREAMLINESTUD-14
    1-1/4”
    1/4”
    7-16”-20
